1)laser engraving machine, 2)DSP control USB interface, 3)lasercut5.3 software, 4)1600*2500mm area, 5)CE, FDA certificate - details see: https://www.machineto.com/2013-new-hot-sale-large-area-laser-engraving-machine-for-acrylic-wood-plastic-fabric-jd-1625-10279182

laser engraving machine

Performance:

Ø Leading offline control system which can not only work without computer, but also connect to U disk, USB communication. The professional moving accurate calculation makes high efficiency and smooth engraving and cutting;

Ø Optimal import liner bearing with high precision;

Ø The front and back running-through design, suitable for super-length material process;

Ø Pertaining to software that has been particularly designed and written for engraving and cutting with high compatibility, support any computer operating system;

Ø Honeycomb or aluminous strip work table, suitable for timber, acrylic cutting and engraving;

Ø Optional hand or electric up-down work table, very good for different cutting depth requirement for lots of material;

Ø Optional column-like system with multi-function circle cutting, applicable in lots of column or cone workpiece surface-engrave;

Ø The frame of machine is stable, ensure the precision when cutting.

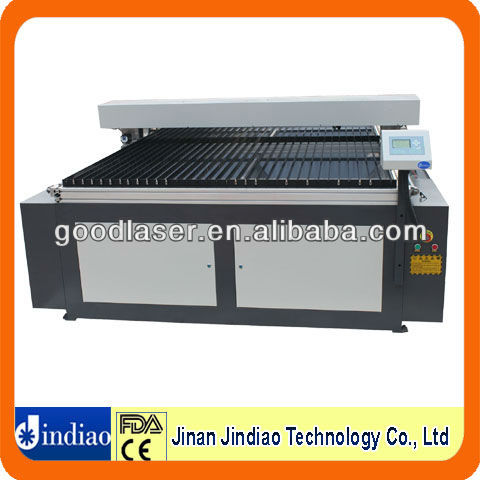

2013 NEW,hot-sale Large area laser cutting machine for acrylic/wood/plastic/fabric JD-1625

Technical parameter:

1) Working area:1600 x 2500mm

2) Laser Types: Hermetic And DetachedCO2 Laser Tube

3) Laser power: 80W (Optional:100W,150W)

4) Engraving speed: 0-75,000mm/min

5) Cutting speed: 0-40,000mm/min

6) Location precision: ≤0.01mm

7) Resetting positioning accuracy: ≤0.01mm

8) Power supply: AC 220V/50Hz

9) Gross power: <1,000W

10) Operating temperature: 0 - 45°

11) Operating humidity: 5 - 95%

12) Minimum shaping character: English 1 x 1mm

13) 360°slope engrave: Yes

14) Driving system: Stepper

15) Cooling mode: Water-cooling and protection system

16) Auxiliary Devices: Exhauster And The Exhaust Pipe02091635

17) Software: Lasercut 5.3

18)Graphic format supported: BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc02091139

19) Optional: Up&Down work table, Rotary Clamp, Red light pointer, Auto focus

20) Optional water cooling system: water pump, water chiller, air cooler

Main application:

Available materials oflaser cutting machine:

acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials

Comprehensive application oflaser cutting machine:

advertisement, arts and crafts, toys, textile garment, leather, car, mechanism, electron, building upholster, timekeeper and jewelery industry and so on.

what material can be cut and engraved?
