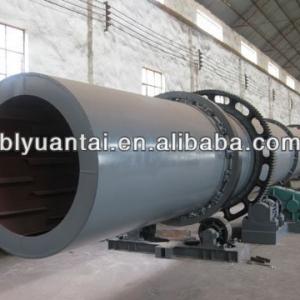

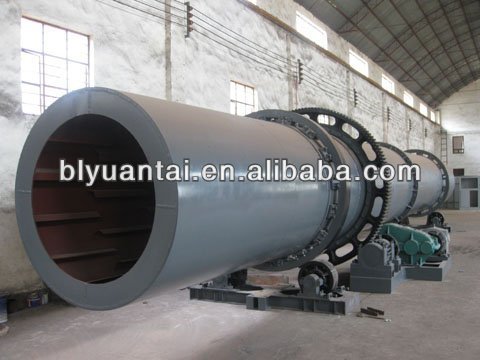

2013 hot selling sawdust dryer from reputable China manufacturer

2013 hot selling sawdust dryer, 1.simply structure, 2.polished manufacture, 3.high capacity, 4.low energy consumption - details see: https://www.machineto.com/2013-hot-selling-sawdust-dryer-from-reputable-china-manufacturer-10287511

Condition:New	Type:Drum Drying Equipment	Place of Origin:Henan China (Mainland)	Brand Name:Bailing
Model Number:BL	Voltage:380V 50Hz	Power(W):4-55kw	Dimension(LWH):as required
Weight:all	Certification:ISO 3C	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas
Application:drying coal cement clay etc.	Color:as your requirement	Price:negotiable	Installation:fundation drawing or as request
gradient:3-5 degree	Materials:high-quality steel	Wearing parts:carrier roller,supporting roller	Products name:2013 hot selling sawdust dryer
OEM:accept

Description of sawdust dryer :

Wet material is loaded from one head of the sawdust dryer , and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the drver.

Applications of sawdust dryer :

Applicable for drying big particles, heavy particles in chemical, mining, and sawdust , such as mining area, cinder of blast furnace, coal, powder of metal, phosphate fertilizer and thiamine.
For drying the powder or particles with special requirements, such as HP foaming blowing agent, residule of alcohol, light calcium carbonate, active clay, magnetic powder, graphite, and residue of medicine. For materials to be dried under low temperature and large lot continuous production

Features of sawdust dryer :
The motorization level of the barrel is high, and the production capacity is high.
The resistance that the material passes through the barrel is less, and the power consumption is low.
Application capability to different characters of materials is high.
The operation is stable, the operation fee is low, and the uniformity of product drying is good.

Main technical parameters of sawdust dryer :

Model	The Diameter (mm)	The Length (m)	Slope(°)	Speed (r/min)	Power (kw)	Volume (m3)
0.6×8-12	600	8-12	3-5	8	4	2.26
0.8×10-10	800	10-12	3-5	7.2	4	5.02
1.0×10-12	1000	10-12	3-5	6.73	5.5	7.85
1.2×12-18	1200	12-18	3-5	5.8	11-15	13.31
1.5×12-18	1500	12-18	3-5	4.8	15-22	21.2
1.8×12-18	1800	12-18	3-5	3.2	185-30	48.22
2.2×12-22	2200	12-22	3-5	3	22-30	70.43
2.8×15-24	2800	15-24	3-5	2.59	30-55	147.8

Our company:

Our certificate:

Packaging Detail:2013 hot selling sawdust dryer from reputable China manufacturer packing:1. standard containers, in which mainframe are color-stripes cloth packed, the spare parts be packed in wooden box 2. by bulk ships, the mainframe will be fixed well.

Delivery Detail:have on stock, deliver asap
