1double row self-aligning roller bearings reducing friction, 2drum feeder no intertial impact, 3stable operation highefficiency - details see: https://www.machineto.com/2013-hot-sell-on-china-manufacturer-small-ball-mill-10313910

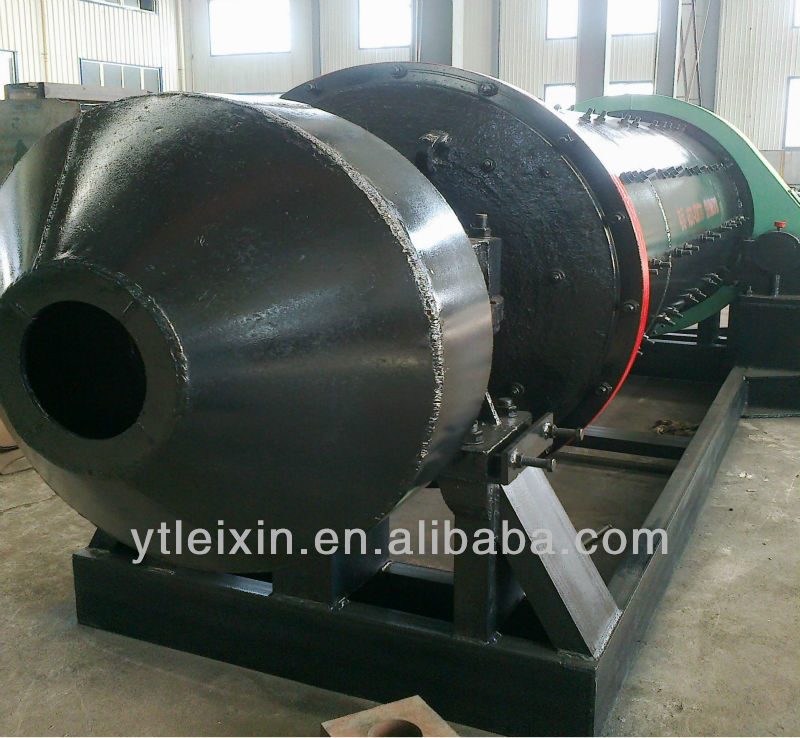

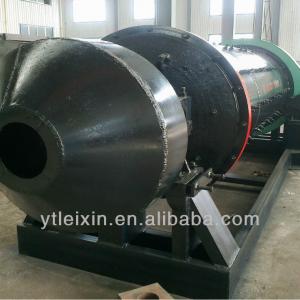

Small ball mill

Features

1large diameter double row self-aligning roller bearingsare adopted for main bearing instead of the original sliding bearing,reducing the friction and energy consumption,and making the mill start up easily.

2 it maintains the end cover structure of common mill ,with large-caliber feeding and discharging openings,which realizes large processing capacity.

iso9001 ♣ Nationalpatent

By adopting anintegral steel under-frame,the installation precision is high,

By adoptingcylinder feeder, the mill runs stably,the time of closed down is reduced.

Including:Main machine,Motor,Liners,Reducer,Starup cabinet,etc.

Technical data of small ball mill

model	standards	(r/min) rovolution of the shell	(t) weight with balls	(mm) size of supplying minerals	(t/h) output	cooperate motor		(mm) dimension l*w*h	(kg) weight
						model	(kw) power
MQG(Y)1852	1830*5200	27.2	18.8	0-25	8.0-50.0	JR1137-8	210	1175*3960*2250	37715
MQG(Y)1864	1830*6400	27.2	23.2	0-25	10.0-60.0	JR1138-8	245	12925*3960*2250	42440
MQG(Y)1870	1830*7000	27.2	25.3	0-25	11.0-65.0	JR1138-8	245	1325*3960*2250	46418
MQG(Y)2265	2200*6500	21.4	34	0-25	6-67	JR1158-8	380	12700*5100*3890	64800
MQG(Y)2436	2400*3600	23	20.6	0-25	6.4-81.5	JR11410-8	280	9770*5000*3970	63684
MQG(Y)2445	2400*4500	23	25.1	0-25	7.9-99.2	JR1158-8	380	10570*5000*3970	72284
MQG(Y)2464	2400*6400	23	36.7	0-25	11.2-131.5	1510-8	475	12470*5000*3970	86186
MQG(Y)2736	2700*3600	21.7	28.4	0-32	15.0-115	JR1158-8	380	10575*5610*4500	88400
MQG(Y)2742	2700*4200	21.7	33.1	0-33	17.5-135	JR1510-8	475	11175*5610*4500	90420
MQG(Y)3036	3000*3600	19.5	32.8	0-34	11-71.3	TDMK570-32	570	14725*6730*5400	102000

Notes for selection

Making selection , please specify Ball Mill rotation, nesting mode, change the bearing model
