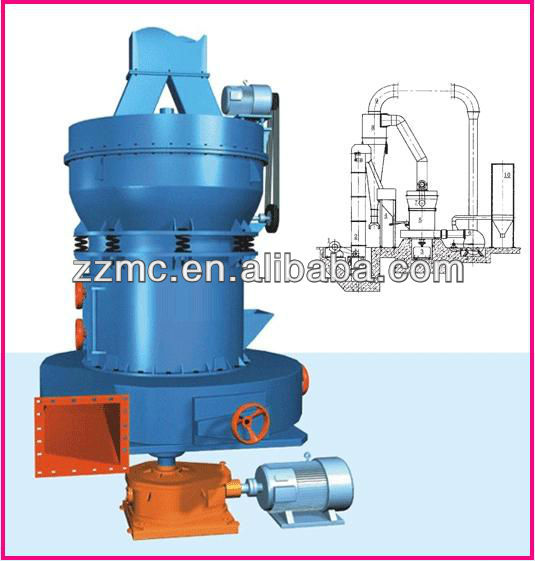

2013 Hot Sales Good Quality Raymond Mill

Raymond mill, 1.adjustable final size:0.044-0.125mm, 2.Good sealing effect, 3.Capacity:0.9-9.5t/h, 4.Low noise - details see: https://www.machineto.com/2013-hot-sales-good-quality-raymond-mill-10314265

Condition:New	Type:Raymond Mill	Motor Type:AC Motor	Power(W):380V or as request
Capacity(t/h):different model different	Place of Origin:Henan China (Mainland)	Brand Name:MC	Model Number:multi-models
Dimension(LWH):different model different	Weight:different model different	Certification:ISO9001:2008	Warranty:12 months for spare parts free changed and lifetime after sale service
After-sales Service Provided:Engineers available to service machinery overseas	Certificate:ISO9001:2008	Application:barite,calcite,feldspar,talcum,marble,limestone,clay,glass,etc	Input size:0-35mm
Output size:0.044-0.165mm	Capacity:0.9-9.5t/h	Motor:China brand or as request	Guarantee:12 months for spare parts and lifetime service
Installation:under the engineer's guide

2013 Hot Sales Good Quality Raymond Mill

contact supplier for 2013 Hot Sales Good Quality Raymond Mill

Raymond mill
1.adjustable final size:0.044-0.125mm
2.Good sealing effect
3.Capacity:0.9-9.5t/h
4.Low noise

1. Raymond MillApplication

Raymond mill is applicable to the grinding and processing or more than 280kinds of non-flammable and non-explosive materials with hardness less than 7 moths and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass, The fineness of the finished product can be adjusted from 30 mesh to 325 mesh according to requirements.

2. Raymond MillCharacteristics

> Raymond mill final production size fineness range is broad may adjust willfully.

> The dust removal effect conforms to the country dust emission standard completely.

> The grinding machine interior attrition installment uses the multistage seal, the sealing property is good.

> Raymond grinder is stable in the movement process, the noise is small.

3. Raymond mill Technical Data

Model			3R2715	3R3016	4R3216	5R4121	6R4427
Roller	Number		3	3	4	5	6
	Diameter (mm)		270	300	320	410	440
	Height (mm)		150	160	160	210	270
Ring	Diameter (mm)		830	880	970	1280	1600
Ring	Height (mm)		150	160	160	210	270
Maximum Feed Size (mm)			15-20	15-20	20-25	<30	<35
Finished Powder Size (mm)			0.044-0.165	0.044-0.165	0.044-0.165	0.95-0.033	0.95-0.033
Power of the Main Frame (KW)			22	30	37	75	132
Fineness of Final Product (mm)	0.125	Capacity (t/h)	2.3-2.8	0.6-1.2	3.2-4.5	6-9.5	18-22
	0.075		1.8-2.3	1.9-2.6	2.4-3.1	4.5-8	10-15
	0.044		0.9-1.7	1-1.9	1.8-2.5	3-5	8-10

Service Standards of Meichang Company:

Pre-sale:
(1) device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) training technical personnel for clients.
(4) the company free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and programs.

Sale:
(1) product acceptance.
(2) to help customers develop construction programs.

After-sale:
(1) free to assign a dedicated service personnel, arrived at the scene and guide customers installation.
(2) equipment installation.
(3) on-site training of operators.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user satisfaction
