cement ball mill, 1.strong adaptability, 2 .continuous production, 3.large crushing ratio, 4.easy to adjust the size of the p - details see: https://www.machineto.com/2013-hot-sale-cement-ball-mill-2-7x3-6m-made-in-hongji-factory-10314153

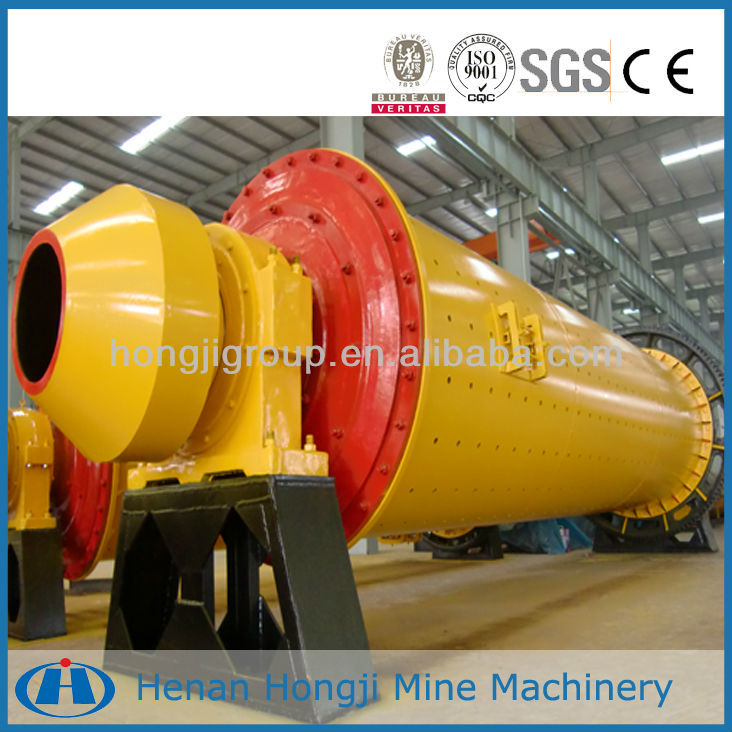

cement ball mill

Raw mill is mainly used in grinding raw materials and final products in cement plant ,It is also suitable for grinding various ores and other materials in the metallurgy mine ,chemical ,construction and other industries ,Besides ,it has two forms of mining, one is an open form, and the other is a recycle close form equipped with powder concentrator ,It is widely applied in many industries and has convenient operation. It has many advantages such as, strong adaptability, continuous production ,large crushing ratio ,easy to adjust the size of the product.

Working principles of cement ball mill:

The raw mill uses pressure and shear generated between the rollers and the rotating table to crush and grind raw materials.
Feed material is directed onto the grinding table by the feed chute. The rotation of the grinding table accelerates the material towards the grinding track and passes it under the rollers. Coarser material and bigger humps drops through the nozzle ring – and is eventually recirculated into the feed material inlet.
Moisture evaporates almost immediately as the gas stream carries the finer portion of material to the separator. The separator allows material that has reached the required fineness to leave the mill and sends oversized material back for further grinding.

Advantages and Features of cement ball mill:

High-performance separator and optimized airflow ensure high separation efficiency and low pressure loss for energy savings

Unusually large rollers permit coarse feed and ensure a thick grinding bed for maximum uptime

All impact forces and dynamic reactions are small and vertical and thus easy to accommodate – prevents mill stops

Segmented wear parts for table and rollers allow use of the most wear-resistant materials and/or hard facing for long life

Reversible roller segments ensure high material utilization

External circulation limits fan power consumption

Feed sluice ensures low false air flow and steady feed flow for minimum power consumption and optimum mill production

The raw mill is easily adaptable to high airflow required by especially wet or easy to grind materials

Main Technical Parameters of cement ball mill:

Spec(m) Diameter x length	Rotary Speed (r/min)	Speed size (mm)	Capacity(t/h)	Load of Grinding Media(t)	Main motor			Main reducer		Weight(exclude Motor and Reducer(t)
					Mode	Power (kw)	Speed (rpm)	Model	ratio
2.2x7	21.4	≤25	20-25	31	YR148-8	380	740	ZD70-9	5	41
2.2x13	21.6	≤25	33-37	58-60	YR630-8/1180	630	740	MBY630	5.6	95
2.4x8	20.91	≤25	25-28	39-42	JR1512-8	570	740	ZD80-9	5	76.4
2.4x10	20	≤25	38-40	50	YR710-8/1180	710	740	JDX630	5.6	133
2.6x10	20.6	≤25	40-42	62-65	YR800-8/1180-8	800	740	JDX710	6.3	92.4
3x9	19.13	≤25	50-55	76-80	YR1000-8/1180	1000	740	JDX800	6.3	137
3.2x9	18.3	≤25	60-70	90	YR1250-8/1430	1250	740	JDX900	7.1	157
3.5x10	17.3	≤25	75-80	87	YR710-8/430	1600	740	JDSX1000	6.3	210
3.8x7.5	16.7	≤25	85	85	YR710-8	1600	740	JDX900	5.6	218
4.6x10 (center-driven)	15.1	≤25	195	190	YR1000-8	3350	740	JS150-B		315
