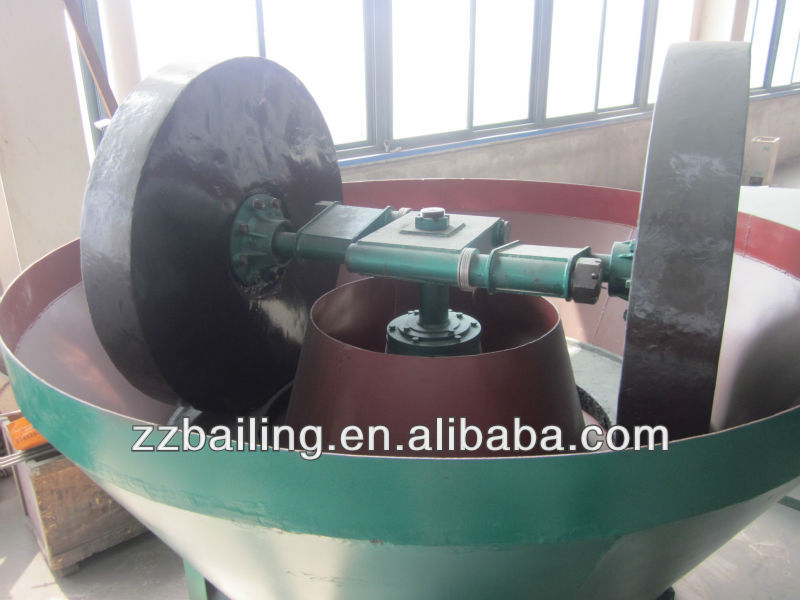

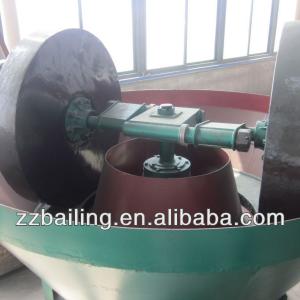

2013 High Quality Gold Wet Pan Mill

2013 High Quality Wet Pan Gold Mill, 1.high efficiency, 2.easy installation and maintenance, 3.3C&ISO9001 - details see: https://www.machineto.com/2013-high-quality-gold-wet-pan-mill-10314146

Condition:New	Type:wet pan mill	Motor Type:AC Motor	Power(W):all
Capacity(t/h):all	Place of Origin:Henan China (Mainland)	Brand Name:bailing	Model Number:all
Dimension(LWH):all	Weight:all	Certification:ISO9001, CCC	Warranty:1 YEAR
After-sales Service Provided:Engineers available to service machinery overseas	Color:red,yellow and white,as request	Application:stone / ore	Name:wet pan gold mill

2013High QualityGoldWet Pan Mill

Specifications

The wet pan mill is a new mill, small investment, high yield, the production cost is low, good benefits.

Thewet pan mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore.

As their small investment, high yield, the production cost is low, good benefits, praised by users, domestic alternative to the ball mill equipment. Grind gold machine easy installation and maintenance, small investment, high yield, quick, low-cost production, is the ideal equipment for mine SMEs beneficiation.

Mainly used with gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, mine, all ball mill can be selected grind gold machine can be used. Characteristics: grind gold through the raw material mixing, rolling, crushing, rolling repeatedly reach moisture equilibrium ratio of uniform, low gas content, improve the forming rate and forming quality, grind the material through the machine molding Products with high density, good strength, no porosity ratio weight. Energy efficient, high volume of output, the product is used for iron ore process tailings recovery, not to slag the loss of effective resources can be fully utilized

Grind Gold Machine Use and Maintenance

1.The normal operation of the mill, before they start feeding.

2, this machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.

3, should be uniform feeding not erratic, it is best to use the feeder.

Part

4, bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.

5, regular checks of the various parts of the screw is loose.

6.Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts

7 mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.

8, machine maintenance, to ensure safety, you must remove the motor belt.

Model	Specification	Input size(mm)	Rotate Speed (r/min)	Powder(kw)	Weight(t)
1600A	1600×400×200×500±20mm	<30mm	20-22	25KW	14.5
1500A	1500×350×200×460±20mm		20-22	22KW	13.5
1500B	1500×350×150×460±20mm		20-22	22KW	12.3
1500C	1500×300×150×420±20mm		20-22	22KW	11.3
1400A	1400×250×150×350±20mm		16-18	18.5kw	8.5
1400B	1400×250×150×350±20mm		21-23	18.5kw	8.5
1350A	1350×250×150×350±20mm		16-18	18.5kw	8
1350B	1350×250×150×350±20mm		21-23	18.5kw	8
1300A	1300×250×150×350±20mm		16-18	15kw	7.5
1300B	1300×250×150×350±20mm		21-23	15kw	7.5
1200A	1200×200×80×250±20mm		17-19	7.5kw	5.5
1200B	1200×200×80×250±20mm		23-25	7.5kw	5.5
1100A	1100×200×80×250±20mm		17-19	7.5kw	5
1100B	1100×200×80×250±20mm		23-25	7.5kw	5
1000	1000×200×80×250±20mm		13-15	5.5kw	4.5
