2013 Henan Luoyang ball mill machine for milling machine
| Condition:New | Type:Ball Mill | Motor Type:AC Motor | Power(W):110-132kw |
| Capacity(t/h):12~280t/h | Place of Origin:Henan China (Mainland) | Brand Name:HUAZN | Model Number:GMQ |
| Dimension(L*W*H):as required | Weight:as required | Certification:CE,ISO9001:2008 | Warranty:1 Year |
| After-sales Service Provided:Engineers available to service machinery overseas | color:red blue orange etc |

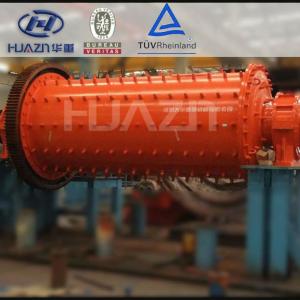

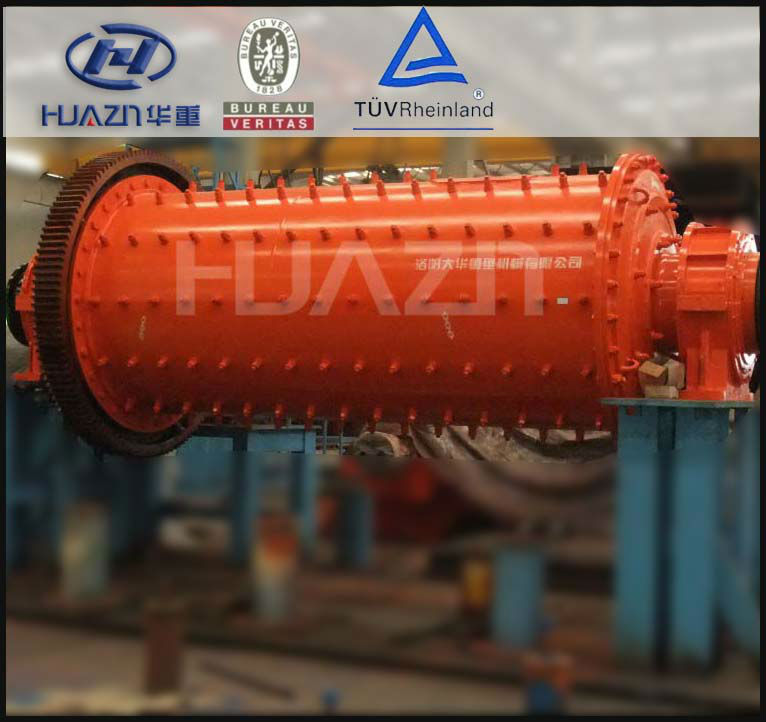

Ball Mill
Product Description
Ball mill is widely used in black, non-ferrous metal mining, building materials, chemicals, electricity, coal, transportation, light industry and other industrial sectors. Our high-efficiency and saving-energy ball mill adopts rolling bearing substituting for sliding bearing, which can save energy 10-20% compared with sliding bearing. Adopting oil grease in place of thin oil lubrication station, and large-type mill needs not to be equipped with high-and-low pressure lubrication station with high cost.
Lattice-type ball mill has lattice panels at the discharge end, with more volume of ball, larger installation power, higher capacity and more coarse discharge granularity and usually used in primary crushing; Spill-over ball mill are usually used in fine grinding with lattice panels at the end and with higher discharge opening, less volume of ball, smaller installation power, lower production capacity and finer discharge granularity.
Performance Parameter
To give you a responsible quotation, you can inform us the following information:
1). What's the material you are going to deal with?
2). What's the granularity of the material?
3). What's the granularity of the final products are you going to achive?
4). What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
Model | Barrel (mm) | Rotate speed of barrel (r/min) | Max. feed size (mm) | Max. feed temperature (0C) | Mesh Size (mm) | Capacity (t/h) | Inclination angle of barrel (°) | Power (kw) | Dimension (mm) | Weight (kg) | |
Diameter | Length | ||||||||||
ZM2540 | 2500 | 4000 | 17-24 | 300(40) | 50 | 30-50(1-10) | 20-30 | 0-2 | 110-132 | 7800×4900×4800 | 53400 |
ZM2560 | 2500 | 6000 | 17-24 | 300(40) | 50 | 30-50(1-10) | 25-40 | 0-2 | 160-200 | 8600×4700×5800 | 73608 |
ZM3030 | 3000 | 3000 | 14-20 | 300(50) | 50 | 30-50(1-10) | 25-40 | 0-2 | 132-160 | 6300×4700×5600 | 63560 |
ZM3040 | 3000 | 4000 | 14-20 | 300(50) | 50 | 30-50(1-10) | 30-50 | 0-2 | 160-220 | 7300×4700×5600 | 67957 |
ZM3060 | 3000 | 6000 | 14-20 | 300(50) | 50 | 30-50(1-10) | 40-60 | 0-2 | 250-280 | 9300×4500×5400 | 98600 |
| Packaging Detail:In Nude/ Bare in Loose /Traditional Packing /Packed in Strong Carton/Covered with Wooded Case /Bales Off etc |
| Delivery Detail:30days |
