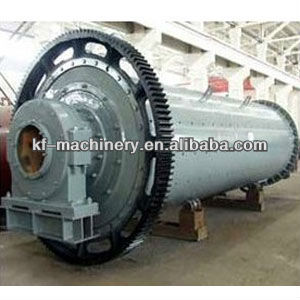

2013 Environment friendly cement raw mill model Dia2200*700

Environment friendly cement raw mill model, 1. High efficiency and capacity, 2. Environment friendly, 3. Easy to control - details see: https://www.machineto.com/2013-environment-friendly-cement-raw-mill-model-dia2200-700-10314261

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):380-3530 kw
Capacity(t/h):8-87 t/h	Place of Origin:Henan China (Mainland)	Brand Name:KF	Model Number:KF
Dimension(LWH):Depends on the model	Weight:54-254 t	Certification:ISO CE	Warranty:one year
After-sales Service Provided:Engineers available to service machinery overseas	Color:Different color as you need	Form of mill:Open or close	Form of transmission:Edge or center
Feeding size:0-15 mm	Discharge size:0.074-0.4 mm	Structure & cost:Simple and low	Installation:Under our engineer's guide
Logo:KF	Name:Cement mill

Environment friendly cement raw mill

1. Company Introduction

Henan Kefan Mining Machinery Co.,Ltd has an area of 35,000 square meters production base. Henan Kefan has cultivated a professionaltechnology and after-sales service team, and successfully achieved ISO9001:2008 Quality Management Certificate and CE Certificate.

Till now, we have formed a whole production chain with main products: crushing machinery, grinding machinery, and auxiliary products. Products cover more than 30 models of 5 major series: brick machine,briquette equipment,agricultural products, rotary kiln and powder-making machine. Advanced technology content, high reliability, low operation and maintenance cost have enabled our products to take the leading position in the field.

2. Application of cement raw mill

Cement mill is the key equipment to crush again after materials are broken.Cement mill is widely used in cement,silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics industry,etc.It can dry or wet grind a variety of ores and other grind-able materials.

3. Working principle of cement raw mill

The cement mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.

4. Structure of cement raw mill

Cement mill is composed of feeding parts,discharging part, turning part, transmission part (reducer, small transmission gear, motor, electric control),etc.Hollow axis adopts the cast steel,lining can be replaced,rotary rack wheel adopts casting gear for process,in the barrel beset with wear-resisting liner,it has good abrasion resistance.The machine runs smoothly,work reliably.

Note:Cement mill is used to grind cement raw materials,which is divided into dry method and wet method.

5. Technical parameter of cement raw mill

6. Certificate and delivery
