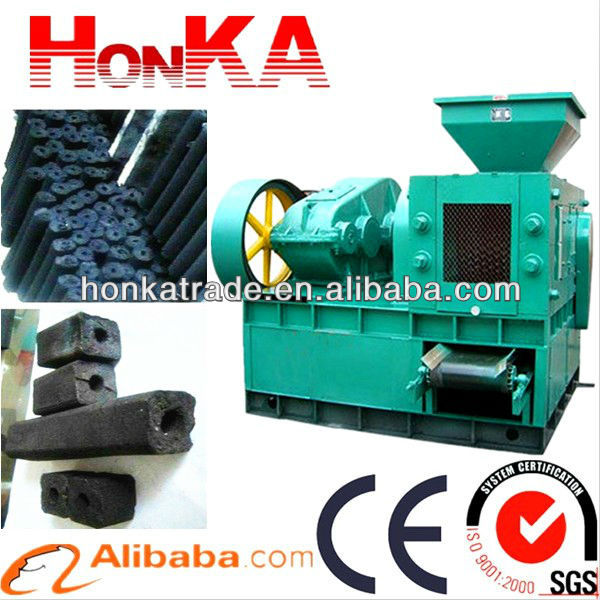

2013 Energy-saving coal ball briquette machine for Sale

coal ball briquette machine, 1. fully automatic, 2. Briquette size:30-60mm diameter, 3. 12 months guarantee, 4. ISO, CE - details see: https://www.machineto.com/2013-energy-saving-coal-ball-briquette-machine-for-sale-10309962

Type:Briquette Machines	Condition:New	Production Capacity:3-5MT per hour	Motor Type:AC Motor
Power(W):7.5kw	Place of Origin:Henan China (Mainland)	Brand Name:HonKA	Model Number:HK-bq125A
Dimension(LWH):100030001500	Certification:ISO,CE	Warranty:1 whole year	After-sales Service Provided:Engineers available to service machinery overseas
capacity:3-5metric tons charchoal briquette	roller material:65Mn	end product shape:round, square, pillow briquette as required	raw mateiral:coal/charcoal powder or sawdust
Application:barbecue(BBQ)	briquette size:90-125mm diameter	machine weight:1.8 metric tons	briquette mould:all kinds available
briquetting machine working process:automatically by electricity	working speed:40-65 pieces per min

1. Raw Materialprocessed by coal ball machine:

Coal,Carbon Black,Charcoal Powder, Sawdust, Smashing Straw, Animal Dung, Banana Peel.

2. Usageforcoal ball press machine:

To make the raw material into briquette, then can save the heat value

3. The Whole Process for coal ball press machine

Crusher---Mixer----briquette making machine

The working process:firstly, the motor transmits power to transmission through the belt;

at the same time, the transmission outputshaft power to propeller through the floatingcoupling;

then, the thruster of propeller push forward coal through forming die to produce the hig density coal balls.

4. Main Partsforcoal ball press machine:

Main Parts for briquette machine:the feed section, the transmission part/ and the molded part.

1) The Crusher forcoal ball press machineCrusher for briquette machine if raw material (coal, charcoal, carbon black, is bigg part, needs to use this crusher to process firstly.)

Model	Capacity(Tons/H)	Speed (Rotate/Min)	Power (KW)	Weight (KG)
HK-Bq1	2-3	1080	5.5	400
HK-Bq2	5-8	1550	7.5	640

2)The Main Machine: briquette machine

Model	Briquette Height	Number of Stroke (min)	Power	Briquette size (mm)	Weight	Holes Qty
HK-220	90(mm)	20 +2	11kw	¢180-¢220	3.8Tons	Round:16-21 Square:16-25
HK-160	100	32 +2	11kw	¢100-¢160	3.5Tons	Round:9-21 Square:9-25
HK-125A	70-90mm	50±2	7.5KW	¢90-¢125	1.8Tons	Round:9-19 Square:9-16
HK-125	70-85mm	50±2	7.5KW	¢90-¢125	1.8Tons	Round:9-19 Square:9-16
