charcoal coal powder briquette machine, 1.High quality and efficiency, 2.Long service life, 3.Low consumption - details see: https://www.machineto.com/2013-china-most-popular-charcoal-coal-powder-briquette-machine-shisha-charcoal-stick-machine-coal-charcoal-extruder-machine-10343325

2013 China most popular charcoal coal powder briquette machine / shisha charcoal stick machine /coal charcoal extruder machine supplier 008613253417552

1. Advantages of this charcoal coal powder briquette machine :

1.This machine is to make coal and charcoal powder into sticks. This is the first step to make silver charcoal.

2. The shape of the sticks can be made by customers requirements.

3.The product made by this machine is no pollution and smoke. It is the most suitable machine for you.

4.the machine can do shisha charcoal /sliver charcoal .

5.it can suitable for charcoal powder , wood charcoal powder , coco nut shell charcoal powder , rice husk charcoal powder , charcoal dust , coal powder

6.lMaterial suitable size : <3mm

7.The shape and size of stick can be made as require , like round , hexagon , cinquefoil , and others , in the stick center , it can with hole or not .

8.For the legth , it has the auto cutter

2.Working principle of charcoal coal powder briquette machine

(1) The motor transmits power to transmission through the V-belt.
(2) At the same time, the transmission output shaft transmits power to propeller through the floating coupling, and the thruster of
propeller push forward coal through forming die to produce the ideal high-pressure coal-stick.

3.. Application of coal bar extruder

This coal bar machine is widely used in chemical industry, metallurgy and ceramic industry, etc. It is the ideal equipment forenterprises to improve production efficiency and reduce consumption.

3. Technical parameters of coal bar extruder

Model	Capacity (t/h)	Diameter of final product (mm)	Spindle moving speed (turn/min)	Quantity of screw vane (pc)
BD-MBJ140	1-2	20-40	46-60	4
BD-MBJ160	2-3	20-60	39-60	4
BD-MBJ210	3-4	20-80	35-60	4
BD-MBJ300	3-5	20-80	35-60	4
BD-MBJ400	6-10	20-80	35-60	4

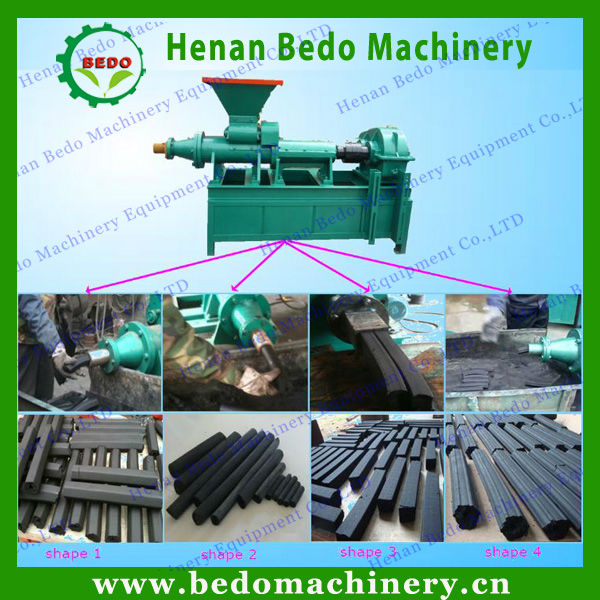

Picture of coal bar extruder

Picture of different coal bars

Remarks
A: coal rods section 15-80 mm in diameter, also can be square model
B: the particle size < 5 mm adding material
C: coal contains moisture content 12-14%
