2013 best sales famous brand barite grinding mill

Barite grinding mill, 1. roller, ZG Mn 13, 2.High efficiency mill, 3.Simple structure, 4.Low power consumption - details see: https://www.machineto.com/2013-best-sales-famous-brand-barite-grinding-mill-10314754

Condition:New	Type:High presure grinding mill	Motor Type:AC Motor	Capacity(t/h):8-20
Place of Origin:Shanghai China (Mainland)	Brand Name:Yiding	Model Number:YGM 4528	Dimension(LWH):in detailed information
Weight:in detailed information	Certification:ISO; BV; CE.	Warranty:One year except wearing parts.	After-sales Service Provided:Engineers available to service machinery overseas
Application:ore,stone,rock,limestone,coal,etc	Installation:under our engineer's guide	After-sale service:for whole using life	Color:as per your requirement
Spare parts:supply for whole year

2012 hot sales grinding mill/ high reputation barite grinding mill/ high quality barite grinding mill

Brief introduction of barite grinding mill

High pressure grinding mill is Yiding’patent product, and it is based on rich experience of mill research & development. Considering feedback from mill users, and development of mill industry, Yiding design this mill with high efficiency and low power construction.

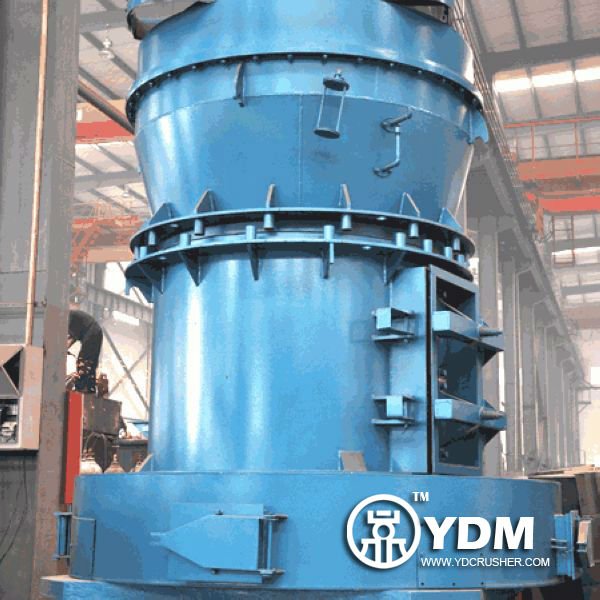

Detailed photos of barite grinding mill

Application of barite grinding mill

High pressure grinding mill is suitable for non-flammable and non-explosive materials, with Mohs hardness less than 9.3, with moisture less than 6%, it is widely used in various industries, such as metallurgy, construction materials, chemical industry, mine, highway, hydropower, etc. it is a good choice for quartz, feldspar, dolomite, limestone, talc, ceramics, marble, iron ore,barite, bentonite, coal gangue, coal, etc. The output fineness can be adjusted between 0.613-0.033mm easily.

Barite grinding mill at working site

Working principle of barite grinding mill

The whole system of High pressure Grinding Mill consists of main frame, decelerator, classifier, piping device, blower, jaw crusher, dustpan elevator, electromagnetic vibration feeder, and electric switch box , motor, etc.
Materials are firstly crushed by the jaw crusher; then the crushed materials is transferred to a hopper by the elevator and fed uniformly, quantitatively and continuously by the vibration feeder in the grinding chamber of the main frame for grinding. The grinding particles are brought up by the air current of the blower into the classifier for classification. The particles with the required fineness are brought up by the air current through the pipe into a cyclone collector for separation and collection and the finished particles are discharged from a pipe outlet.

Structure chart of barite grinding mill

Barite grinding Mill Specifications:

Type		YGM 9518	YGM 4121	YGM 4528
Roller Number		4	5	6
Roller	Diameter (mm)	320	410	450
Roller	Height (mm)	180	210	280
Ring	Inner Diameter (mm)	950	1280	1600
Ring	Height (mm)	180	210	280
Max.Feeding Size (mm)		25	30	35
Grain size of finished product (mm)		1.6~0.045	1.6~0.045	1.6~0.045
Output(t/h)		4~8	6~12	8~20
Overrall Dimension (mm)		7100 x 5900 x 7900	9200 x 7250 x 9700	12250 x 5700 x 8300

Name		Unit	Specification and technical data
Name		Unit	YGM9518	YGM4121	YGM4528
Motor of main unit	Model		Y225S-4	Y280S-4	Y315M1-4
	Power	Kw	37	75	132
	Rotating	Rpm	1470	1480	1480
Motor of adjustable varying speed motor	Model		YCT200-4A	YCT200-4B	YCT225-4A
Motor of adjustable varying speed motor	Power	Kw	5.5	7.5	11
Motor of blower	Model		Y200L-4	Y250M-4	Y315S-4
Motor of blower	Power	Kw	37	75	132

Note: This specification is just reference, any changes are subject to the products.

Spare parts of barite grinding mill

Packaging Detail:Export standard container 20GP or 40GP,40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight.

Delivery Detail:30 Days
