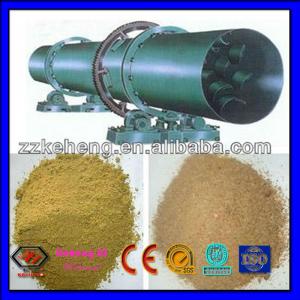

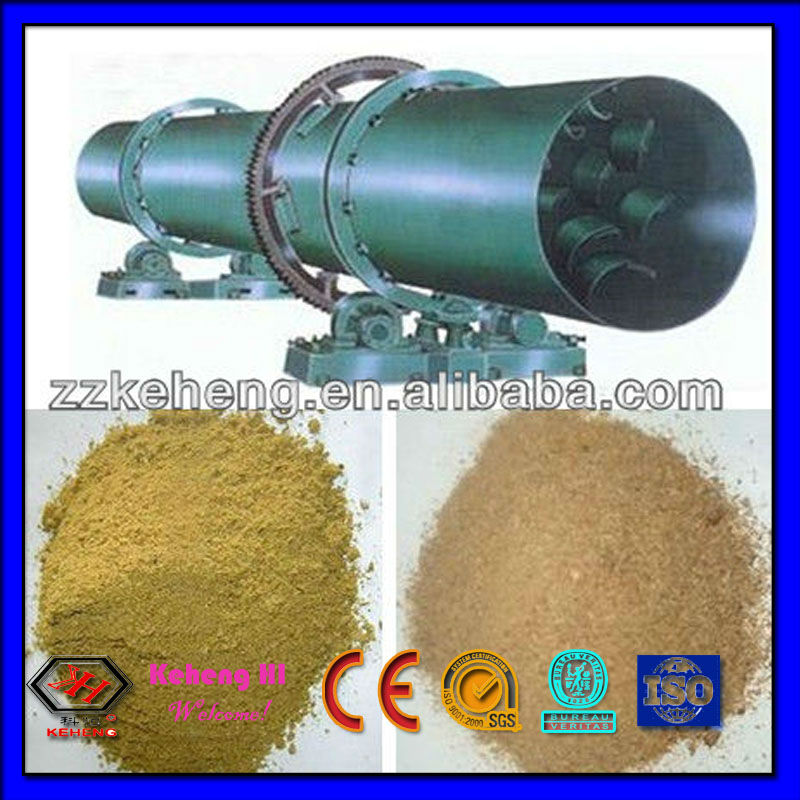

manure dryer, 1.Easonable structure, 2.High capacity, low conumption, 3.Competitive price,High efficiency, 4.CE;ISO9001:2008 - details see: https://www.machineto.com/2013-alibaba-china-new-products-automatic-machine-chicken-manure-dryer-equipment-10294265

Application ofmanure dryer :

The manure dryer is for the fresh chicken, pig, etc manure as the raw material, does not contain any chemical composition. For chickens, pigs and other’s digestive ability is poor, can only consume 25% of the nutrients, and another 75% in feed ingredients is within the eduction of excrement and urine, so it is full of nitrogen, phosphorus, potassium, organic matter, amino acid, protein, etc. Dryer not only creates economic benefits for enterprise, but also makes great contributions to human environmental protection engineering.

Characteristics and advantages ofmanure dryer :

The dryer has advantages of reasonable structure, high efficiency ,low energy consumption,convenient for transportation,and reliable operation;Therefore the consumption of the coal and the electricity is lower than the common ones,while the Production capacity is 10 -15% higher.the operation is very simple and reliabele. For this reason and it is used widely.

Working principle of manure dryer :

This product uses the sleeve sets out the structure can be doubled to reduce the length of the dryer, due to significant reduction of the cooling surface, resulting in decreased heat consumption, while doubling the heat exchange surface to greatly enhance thermal efficiency. Materials that can not touch tobacco, multi-drum rotary dryer provided in the inside and outside the cylinder, respectively, within the smoke pipe and circular pipe, the flue pipe of communication between the radial, the same energy efficient. It is obvious that on the hot and cold media in terms of material, this machine a sleeve-type rotary cooler

The main technical parameters of manure dryer :

Model	shell				Capacity(t/h)	Inlet Temperature (°C)	motor
	Canon(mm)	Length(mm)	angle of inclination(°)	Speed(r/min)			Model	Power(kw)
ZG08800	800	8000	2-5	4.7	1-1.5	<700	Y140M-2	5.5
ZG10100	100	10000	2-5	4.7	1.5-2	<700	Y160M-2	7.5
ZG12120	1200	12000	2-5	4.7	2-2.5	<700	Y160M-4	11
ZG15120	1500	12000	2-5	5	4-6	<700	Y180M-6	15
ZG15150	1500	15000	2-5	5	5-7	<700	Y180L-6	15
ZG18150	1800	15000	2-5	5	7-10	<700	Y200L1-6	18.5
