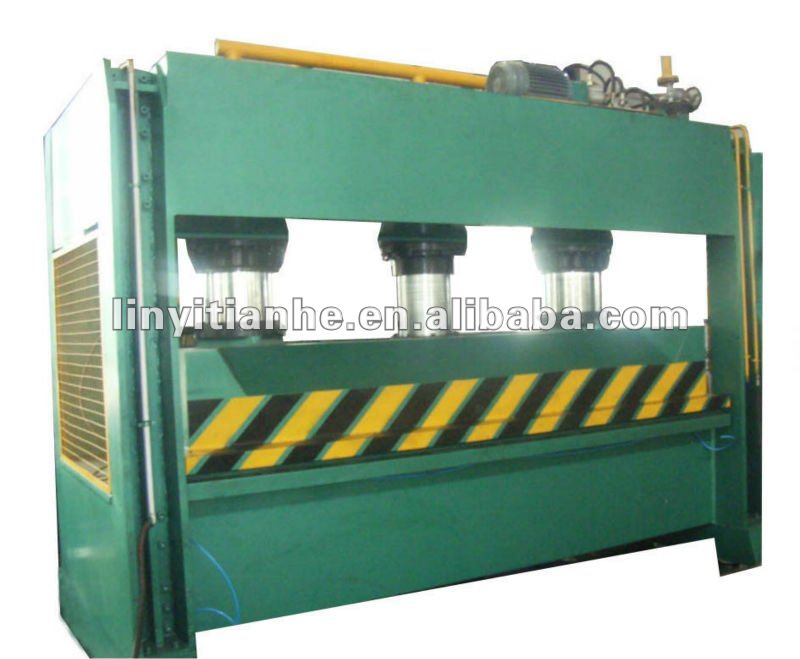

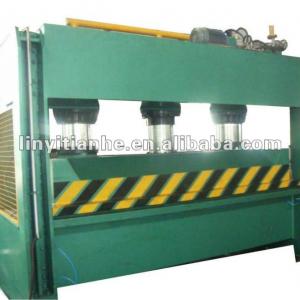

200T door production hot press,door skin production hot press,Door plank hot press
Door plank hot press quality first, excellent quality and reasonable price, the service is supreme, the technical force is abund - details see: https://www.machineto.com/200t-door-production-hot-press-door-skin-production-hot-press-door-plank-hot-press-10343288
| Place of Origin:Shandong China (Mainland) | Brand Name:Tianhe | Model Number:TH-200 | size:3300*1300*2560mm |
| quantity of cylinder | 4 units |
| diameter of cylinder | Φ180mm(alloyed material) |
| stoke of cylinder | 200mm |
| produced place of cylinder | Wuxi,China |
| no-load closing time | about 35s |
| hydraulic systern | microcomputer manually/automatic controlled |
| hydraulic systern compression resistance | 25MPa |
| main motor | 7.5Kw |
| pressurizing motor | 5.5kw |
| main pump | 100:100 pump |
| pressurizing pump | 10ml/rev plunger pump |
| drlling board size | 2400*1300*42mm |
| diatance between layers | 100mm |
| width of plate main frame | 30mm 22mm 10mm |
| Packaging Detail:need no packing |
| Delivery Detail:30 days after your advance payment |
