CNASPC supply high quality air separation unit with advanced process arrangement to attain higher efficiency. - details see: https://www.machineto.com/2000nm3-h-air-separation-plant-liquid-plant-liquid-oxygen-plant-10302667

TECHNICAL PARAMETERS OF ASP

LOX case:

Product	Output,Nm3/h	Purity	Pressure at cold box outlet/Temperature (°C)
LIQUID OXYGEN	2,000	99.5% O2	1.5 bar(G)/ -179°C
LIQUID NITROGEN	150	≤5ppm O2	2.0 bar(G)/ -193°C
LIQUID ARGON	68	≤2ppm O2 ≤3ppm N2	1.6 bar(G)/ -182°C

LIN case:

Product	Output,Nm3/h	Purity	Pressure at cold box outlet/Temperature (°C)
LIQUID OXYGEN	350	99.5% O2	1.5 bar(G)/ -179°C
LIQUID NITROGEN	2,000	≤5ppm O2	2.0 bar(G)/ -193°C
LIQUID ARGON	40	≤2ppm O2 ≤3ppm N2	1.6 bar(G)/ -182°C

REAL PROJECT ACHIEVED AND COMPLETED

• SIGNING CEREMONY OF 2000Nm3/h FULL LIQUID AIR SEPARATION PLANT

• Key machines for this air separation plant (Compressors & Turbo expander)

Air compressor

Air booster

Turbo-expander

• 3D Rendering & General view of completed air separation plant on site

3D RENDERING

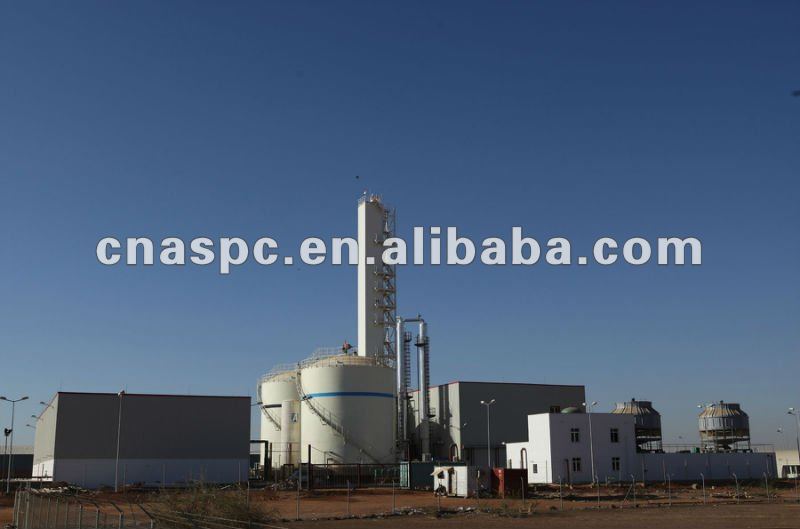

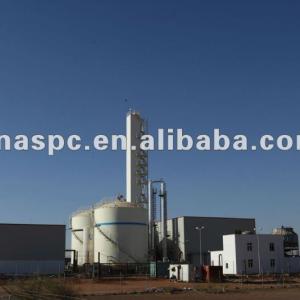

GENERAL VIEW OF COMPLETED ASP ON SITE
