Electric forklift, 1,Easy Open Engine Cover, Comfortable Seat, 2,Transrerse cylinder steering axle - details see: https://www.machineto.com/1ton-to-3-5ton-electric-forklift-with-ce-certificate-10109353

Electric forklift , Battery Forklift,electric lifting truck with CE,

1.8ton 2ton 2.5ton 3ton DC/AC motor,electric forklift

1. SUNRISE battery forklift truck is with quiet operation and low fuel cost. Because this forklift produces less noise and has a lower cost per hour of operation than any IC forklift.
2. In addition, its rated lifting capacity of 3000 kg means you never need to worry about the weight of materials handled.
3. Furthermore, the use of GE or CURTIS controller helps ensure the performance of our electric fork truck.
4. The maximum travel speed of our forklift is 12Km/h and its maximum lifting speed is 280 km/h under full load conditions.

Model			FB10	FB15	FB20	FB25	FB30
Power Model			Battery	Battery	Battery	Battery	Battery
Load Capacity		kg	1000	1500	2000	2500	3000
Load Center		mm	500	500	500	500	500
Max Lifting Height		mm	3000	3000	3000	3000	3000
Forks Size		mm	920x100x35	920x100x35	1070x122x40	1070x122x40	1070x125x45
Tilting angles Forward-backward			6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
minimum turning radius			1900	1900	2090	2090	2245
Minintersecting aisle			3520	3520	3760	3760	4420
Minintersecting width		mm	1830	1830	1990	1990	2030
Ming round clearance at lower point		mm	100	100	110	110	120
Overhead guard height		mm	2120	2120	2150	2150	2170
Fork overhang		mm	420	420	475	475	483
Max driving speeds(with load)		km/h	12	12	11.5	11.5	12
Max lifting speeds (with load)		km/h	280	280	260	260	280
Max grade ability		%	15	15	12	12	12
Overall length (Without forks )		mm	2060	2060	2310	2310	2511
Overall width		mm	1070	1070	1150	1150	1225
Overall height lower head guard		mm	3860	3860	4030	4030	4264
Max Overall height with load		mm	1955	1955	1990	1990	2055
Tire	Forward Tire		6.50-10-10PR	6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28x9-15-12PR
	Backward Tire		5.00-8-8PR	5.00-8-8PR	18x7-8-14PR	18x7-8-14PR	18x7-8-14PR
Wheel base		mm	1250	1250	1450	1450	1600
Wheel distance (front /back )		mm	890/920	890/920	960/950	960/950	1000/980
Total weight (Without load )		KG	2800	2990	3800	4100	5050
Battery	Voltage	V	48	48	48	48	80
	Capacity	Ah	400	400	630	630	500
Motor	Walking	Kw	5	5	8	8	10.2
	Lifting	Kw	7.5	7.5	8.6	10	13.5
Controller			GE/CURTIS	GE/CURTIS	GE/CURTIS	GE/CURTIS	GE/CURTIS
Control mode			DC	DC	DC	DC	DC
Tatted working pressure		mpa	14.5	14.5	17.5	17.5	17.5

Optional:

AC motor, DC motor, Chargers, Battery, Full Free Lifting, Different lifting height, Trible Mast, Cabin, Solid tyres, Side Shift, etc.

• As a specialized battery forklift truck manufacturer and supplier in China, we know that only quality products will satisfy our customers.
• Hence, we employ highly experienced staff, utilize advanced production equipment, and apply a strict quality control system. Due to our tireless efforts, our forklift trucks are reliable, durable, and are CE, CQC certified.
• If you are in need of diesel forklift truck, electric pallet truck, or other material handling equipment, please let us know, we are sure to provide quality forklift trucks at competitive price.

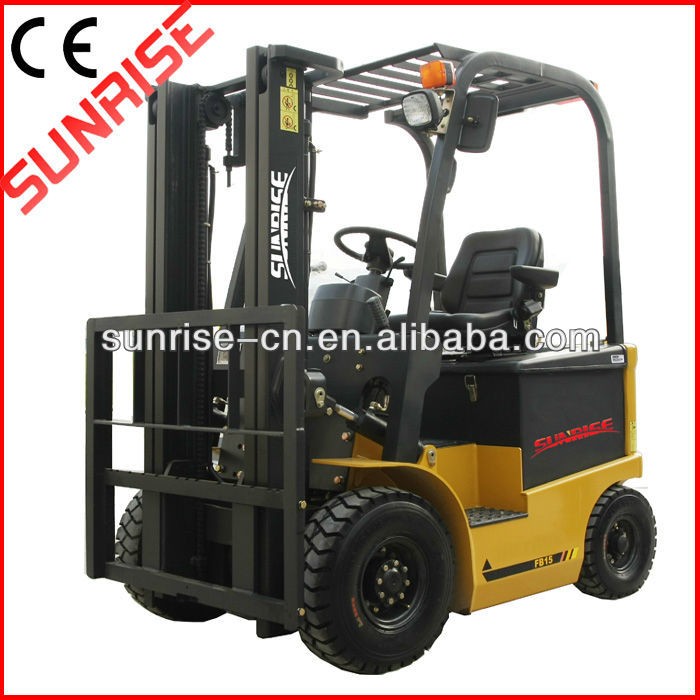

Four wheels battery forklift
