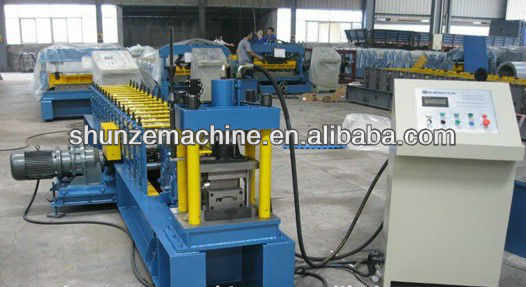

127mm Slats strip Roll Forming Machine

1. CE and ISO certification, 2. fully automatic, 3. we are factory and manufacture customer need machine, 4. 12 month warranty - details see: https://www.machineto.com/127mm-slats-strip-roll-forming-machine-10085828

Condition:New	Type:Tile Forming Machine	Tile Type:Colored Steel	Use:shutter door
Production Capacity:8-12m/min	Place of Origin:Hebei China (Mainland)	Brand Name:ShunZe	Model Number:127mm
Power(W):3KW	Voltage:220V or 380V	Dimension(LWH):700012501300mm	Weight:4500kgs
Certification:CE,BV,ISO	Warranty:12 month	After-sales Service Provided:Engineers available to service machinery overseas	working type:fully automatic
Roller stands:10+5 steps	Roller material:GCr 45 with Chrome plated	Shearing:hydraulic mould cutting	working mode:fully automatically
Program language:English, Chinese, Russian or as your need	PLC Control system:Delta or Panasonic or Mitsubishi	Encode:Omron	Cutting blade:CR12 material
color:gray

1 This roll forming machine can roll forming metal slats strip panel which is mostly used for shutter door. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2 we also can do a custom shutter door roll forming machine, We can design the machine according to your specification and profile

drawing.

3 The following profile drawing are some examples for your reference.

A profile

B parameters

No.	main parameter
1	Suitable to process	Color steel plate
2	Width of the plate	127mm
3	Rollers	10+5 rows
4	Dimensions	4000mm450mm1200mm
5	Power	3+3kw
6	Thickness of the plate	0.5-1.0mm
7	Productivity	8-12m/min
8	Diameter of the roller	Φ40mm
9	Weight	About 1500kgs
10	Voltage	380V 50Hz 3phase
11	Material of the cutting plate	Cr12
12	Hydraulic	40# oil
13	Processing precision	Within 1.00mm
14	Control system	Panasonnic PLC control

C flow chart of roll forming machine

D machine components

Components of Machine and Main Description
	Components of Machine	Main Description
1.	Uncoilerupgrade uncoiler; auto decoiler with car	loading capacity:5000kgs
2.	Feeding Section with guide	Easily for the raw material entry
3.	Main forming machine	Forming the panel according your requirement
4.	PLC control system	Automatically control the quantity of sheet, cutting length.
5.	Cutting blade	Cutting the panel automatically
6.	Set off table	used to get the formed panel
7.	Coverage	Put on chain to escape damage to workers

How to order:

we are good at custom made machines, kindly please send us your drawing or panel sample.

other similar shutter door roll forming machine we manufacturer.

Packaging Detail:1. Tighten to container with steel wire rope and welded machine with container by angel iron2. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)3. PLC contral system and motor pump are packed in wooden box with water proof paper coverage

Delivery Detail:30 days after get deposit
