[104]Non-electric membrane clean dryer sunsep(TM) for medical equipment

A resin membrane gas dryer/humidifier., Easy installation with no electrical power source required. - details see: https://www.machineto.com/104-non-electric-membrane-clean-dryer-sunsep-tm-for-medical-equipment-10286268

Condition:New	Type:Dehumidifier	Place of Origin:Japan	Brand Name:sunsep(TM)
Model Number:SWT series	Voltage:No electricity required	Power(W):No electricity required	Dimension(LWH):Refer to the following table
Weight:1~10[g] (depends on length)	Certification:Please Email us for more detail	Warranty:Please Email us for more detail	After-sales Service Provided:No overseas service provided

[104]Non-electric membrane clean dryer sunsep(TM) for medical equipment

++++++++++++++++++++++++++++++++++++++++++

Non-electric membrane clean dryer

sunsep(TM) for medical equipment

++++++++++++++++++++++++++++++++++++++++++

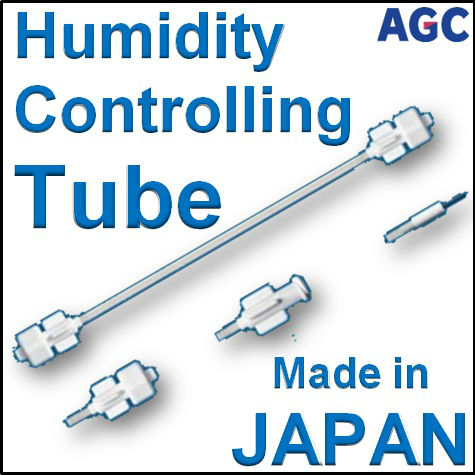

sunsep(TM) is a compact, lightweight membrane type dryer/humidifier made in Japan.

This product can dry or humidify gases by simply installing in a gas line.

SWT Series : Humidify controller ideal for medical use

Clean humidification / dehumidification
sunsep (TM) resin membrane's surface allows to pass through only moisture.
Other gas compositions or substances can't pass through its surface.
This special feature enables both clean humidification and dehumidification.

Easy installation
sunsep(TM) SWT series is made of light and flexible resin membrane.
It can be used as ordinary plastic tubes.

No power supply required
sunsep(TM) SWT series works without any power supply, even purging gas.

Principal use
-Expiration gas analyzers
-Metabolism analyzers
-Minute flux of a sample gas

In the SWT series, a Flemion(TM) tube is surrounded with a plastic braided net.
This flexible braid net offers free humidity exchange with the ambient air, protecting
the Flemion(TM) tube from damage.

This structure enables the product to dry and humidify micro flow sample gases
with a flow of less than 300[ml/min] without purging gas by utilizing the difference
in ambient humidity.

Common Specifications

Fitting Images

MM :Male locking Lure fitting

FF : Female locking Lure fitting

SS : Stainless Steel tube in plastic header

*FM fitting is also available

Pressure Drop

Dehumidifying Performance

For more detailed information, please feel free to ask us.

Mechanism of sunsep(TM)

sunsep(TM) is made from the fluorine-containing resin Flemion(TM). It's hollow fibers
efficiently dehumidify by transferring only moisture through its surface.
This device needs only a difference in external and internal humidity to work.

"Flemion(TM)", a fluorine based resin developed by AGC Asahi Glass
Fluorine-based resin - Chemical resistant

Non-porous membrane/ High water vapor selectively permeable
- It has an affinity for water molecules, there is very little permeation apart

from water vapor. (Clean dehumidification, humidification)

Cationic exchange function / Strong acidity
- In addition to the remove humidification function,

it can also be used for ion removal and absorption.

Flexible - We can design products of various shapes

Spinning Technology

- Compatible with various hollow fiber sizes depending on application.

Packaging Detail:The products are securely wrapped prior to shipping.Packaging Size: Approx. 265(W)x504mm(D)x365(H) (For 20 units)Weight: Approx. 2 Kg.

Delivery Detail:Product delivery 20-30 days after payment confirmation
