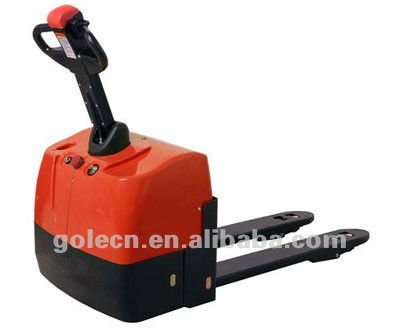

1.3T Mini Electric Pallet Truck

1.3T Mini Electric Pallet Truck, AC motor,Good quality,Reasonable price, your Best Choice - details see: https://www.machineto.com/1-3t-mini-electric-pallet-truck-10109532

Condition:New	Place of Origin:Henan China (Mainland)	Brand Name:GOLE	Model Number:CBD
Type:Powered Pallet Truck	Power Souce:AC Motor	Rated Loading Capacity:1300-2000kg	Max. Lifting Height:120mm
Overall Dimensions:19107901455mm	Certification:ISO,CE	Weight:854kg

1.3T MINI ELECTRIC PALLET TRUCK

Model		CBD13	CBD20	CBD20
Configuration No.		610	460	150
Power type		Electric
Operator type		Walkie	Rider	Walkie
Load capacity	Q(kg)	1300	2000
Load centre	c(mm)	600
Wheel base	y(mm)	1234	1460	1390
Overall height(with control handle)	h14(mm)	1220	1455	1385
Overall length(without pedal)	l1(mm)	1630	1910/1960	1750/1800
Rear length	l2(mm)	500	760	600
Overall width	b1(mm)	724	790	720
Lifting height	h3(mm)	120		110
Ground clearance +fork thickness	h13(mm)	74/85	85
Minimum turning radius	mm	1400	1465/2140	1575
Maximum traveling speed	km/h	3.5/4	6/6	4.5/4.5
Service weight( with battery )	kg		854	612
