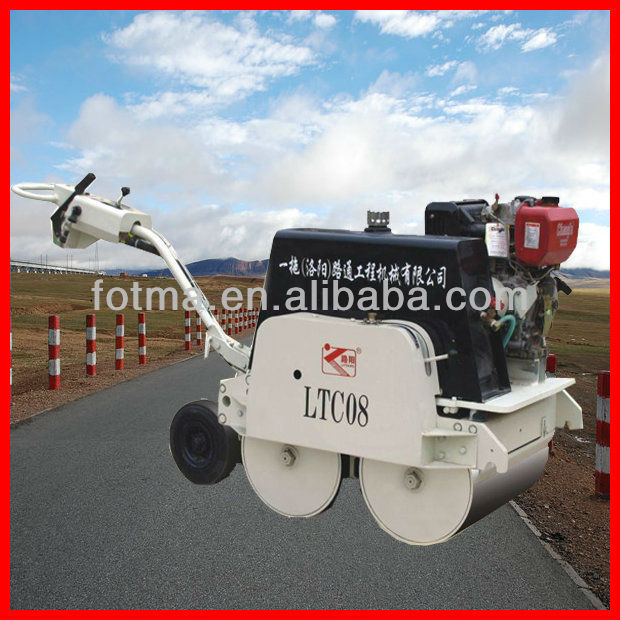

0.8 ton mini road compactor

0.8 ton mini road compactor, 1.Engine Cummins, 2.Excellent performance with reasonable, 3.Hydraulic vibration, 4 Certificate ISO - details see: https://www.machineto.com/0-8-ton-mini-road-compactor-10121505

Condition:New	Type:Double Drum Roller	Static Linear Pressure:46/73(N/cm)	Travel Speed:2.5(km/h)
Grade Ability:40%	Place of Origin:Henan China (Mainland)	Brand Name:Lutong	Model Number:LTC08/LTC08Z
Power(W):5.68KW	Dimension(LWH):2450x820x1030	Weight:0.77t	Certification:CE
After-sales Service Provided:Overseas service center available	Application:0.8 ton mini road compactor	Min. turning radius(mm):2700	Travel speed(km/h):2.5
Grade ability(%):40	Vilibration frequency (Hz):48	Nominal amplitude (mm):0.25	Engine model:CF186F
Parking brake type:hand brake	Color:white	Quality:high

Specifications \ Item NO.	LTC08	LTC08Z
Operating weight(kg)	770kg	770kg
Length x Width x Height(mm)	2450x820x1030	2450x820x1030
Weight burden on front drum(kg)
Weight burden on rear wheel(kg)
Static linear load (N/cm)	46(front wheel)/73(rear wheel)	46(front wheel)/73(rear wheel)
Min. turning radius(mm)	2700	2700
Travel speed(km/h)	2.5	2.5
Grade ability(%)	40	40
Vilibration frequency (Hz)	48	48
Nominal amplitude (mm)	0.25	0.25
Centrifugal force(kN)	12	12
Engine model	Inline air-cooled engine CF186F	Inline air-cooled engine CF186F
Min. fuel consumption(g/km h)	280	280
Rated power(kw)/RPM(r/min)	5.68kw 3600r/min	5.68kw 3600r/min
Fuel tank capacity (L)	5.5	5.5
Vibration pump
Vibration motor
Steering model
Axle type
Tyre
Service brake type
Parking brake type	hand brake	hand brake
Hydraulic oil tank capacity (L)
A/C Model
A/C Refrigerating capacity (W)
A/C Heating capacity (W)
