0.02mm precision hose fitting swaging machine

hose fitting swaging machine, 1.Max.crimping:2", 2.Voltage:380kw/220v/50hz, 3.System pressure:18Mpa, 4.Swaging force:2800KN - details see: https://www.machineto.com/0-02mm-precision-hose-fitting-swaging-machine-10339851

Condition:New	Place of Origin:Tianjin China (Mainland)	Brand Name:Ya-Yu	Model Number:51-3
Voltage:380v/50hz	Power(W):3kw	Dimension(LWH):650X450X740mm	Weight:250kg
Certification:ISO,CE	Warranty:one year	After-sales Service Provided:Engineers available to service machinery overseas	Crimping range:6-51mm
System pressure:18Mpa	Swaging force:2800KN	Oil tank capacity:70L	Die specification:17-63mm
Die quantiy:10 sets	Noise level:65dB	Opening:±25mm	Structure type:sitting operation
Color:yellow,blue,red

0.02mm precision hose fitting swaging machine

contact supplier for 0.02mm precision hose fitting swaging machine

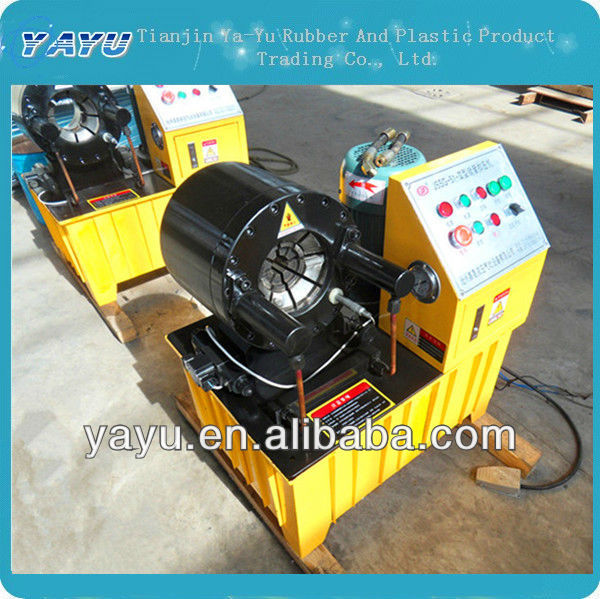

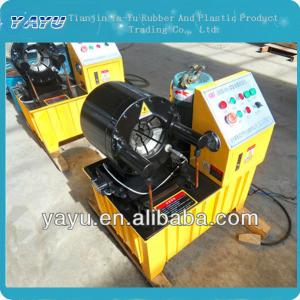

Hydraulic hose swaging machine

1.Features of hose swaging machine 51-3

1 lock parts made strict production process, the selection of appropriate treatment, superior performance, with strong fatigue life.
2 Two hydraulic pumps used Hefei long source high performance gear pumps, high efficiency and durability.
3 hydraulic valves used in northern Taiwan and Hong Kong Seiki products, versatility and high accuracy.
4 piston surface hardness, long-term use is not easy to scratch.
5 Return speed, improve work efficiency.
6 large opening for elbow hose crimping class
7 automatic operation and manual operation with two control modes.
8 with a variety of structural forms to choose from, customers can choose the desired mode of operation type .

2.Uses of hose swaging machine 51-3

Hydraulic hose crimping machine is the shipbuilding industry, oil drilling, heavy industry, as well as an indispensable withhold large mining equipment, according to the product specification models can not withhold a variety of high and low pressure hose, oil hose

3.Technical data of hose swaging machine 51-3

	model	51-3
	Swaging force	2800KN
	System pressure	18Mpa
	Dies specification	17-63mm
	Dies quantity	10
	Opening	±25mm
	Voltage	380v/50hz
	Motor	3kw
	Oil tank capacity	70L
	Noise level	65dB
	Structure type	sitting operation
	Weight	250kg
	L-W-H	650X450X740mm
