Ball mill, 1) wet or dry ball mill, 2) high capacity ball mill, 3) fine end product size after ball mill, 4) ISO9001,CE,CCC - details see: https://www.machineto.com/zhongbo-high-efficiency-ball-mill-10314256

zhongbo high efficiency ball mill

Ball Mill is crucial equipment for grinding after materials are crushed. It is an efficient tool for grinding

various materials into powder. There are two ways of grinding: the dry process and the wet process.

It can be divided into tabular type and owing type according to different forms of discharging material.

I.Zhongbo high efficiency ball mill Application

Ball Millis are widely applied in cement industry, chemical industry, new building materials, re-resistant

materials, fertilizer, porcelain and glass industry etc. It has two ways of grinding: dry process and wet process.

II. Zhongbo high efficiency ball mill Main Features

1. Easy and safe operation.

2. Stable performance.

3. Even product size.

4. Low energy consumption.

5. Low invest,high return .

III. Zhongbo high efficiency ball mill Working Principle:

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred

to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different

specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel

balls to a certain height and impact and grind the materials. The ground materials are discharged through

the discharging board thus the grinding process is finished.

IV.Zhongbo high efficiency ball mill Main Structure

The ball millconsists of:

1,Feeding part , 2,Rotation part , 3,Transmission part

4,Discharging part , 5,Bearing part , 6,Shaft Joint(1)

7,Reduction, 8,Shaft Joint(2), 9,Motor part

V.Zhongbo high efficiency ball mill Technical Data:

Model	MQ0918	MQ0924	MQ0930	MQ0935
Inside diameter (mm)	900	900	900	900
Length(mm)	1800	2400	3000	3500
Speed of cylinder(r/min)	38.4	38.4	38.4	38.4
Feeding granularity(mm)	≤25	≤25	≤25	≤25
Amount of milling ball(T)	1.9	2.1	2.4	2.6
Motor power(KW)	18.5	18.5	22	22
Rated Voltage(V)	380V	380V	380V	380V
Rated Frequency(HZ)	50HZ	50HZ	50HZ	50HZ

VI. ball millPicture

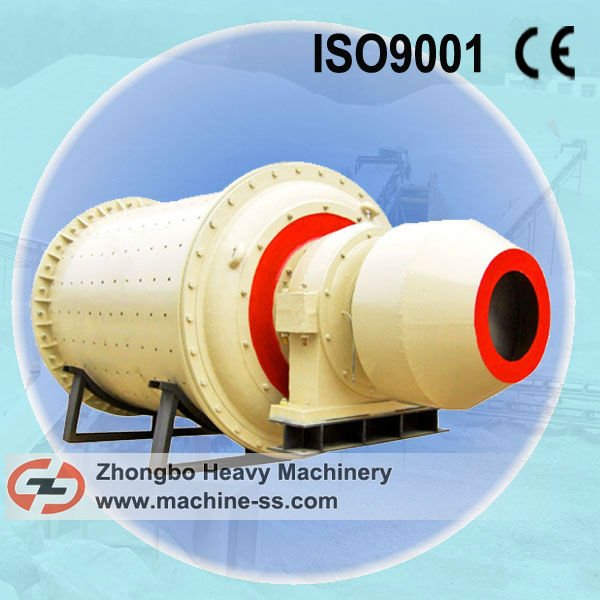

1. the ball mill

2. the ball mill on the port

3. the ball mill on site
