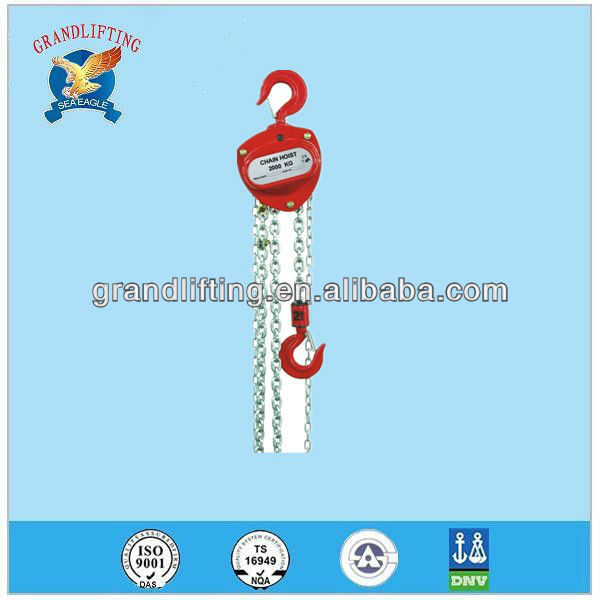

ZHC-A type Manual hoist / Chain hoist

The heavy duty top and bottom hook with casted safety latch. - details see: https://www.machineto.com/zhc-a-type-manual-hoist-chain-hoist-10096784

Condition:New	Place of Origin:Zhejiang China (Mainland)	Brand Name:SEA EAGLE	Model Number:ZHC-A
Usage:Construction Hoist	Power Source:Hand Chain	Sling Type:Chain	Maximum Lifting Weight:500KG-20000KG
Maximum Lifting Height:3M,5M,6M	Lift Speed:0.5M/Min	Certification:GS/CE	Warranty:1year
After-sales Service Provided:Overseas third-party support available	certificate:CE, GS	type:chain hoist	Usage::Construction Hoist
Power Source::Hand Chain

Double pawl to increase the safety protection and ensure the chain hoist for reliable operation.
The ball bearing ensure the better mechanical efficiency.
Overload protection device is available.

Item No.		ZHC-A-0.25T	ZHC-A-0.5T	ZHC-A-1T	ZHC-A-1.5T	ZHC-A-2T	ZHC-A-3T-S	ZHC-A-3T-D	ZHC-A-5T	ZHC-A-7.5T	ZHC-A-10T	ZHC-A-15T	ZHC-A-20T
Capacity(kg)		250	500	1000	1500	2000	3000	3000	5000	7500	10000	15000	20000
Standard lift(m)		3	3	3	3	3	3	3	3	3	3	3	3
No.of load chain falls		1	1	1	1	1	1	1	1	1	1	1	1
Load Chain Dia.	mm	4*12	5*15	6*18	7*21	8*24	10*30	7*21	9*27	10*30	10*30	10*30	10*30
Effort required to lift Max. load(N)		235	240	250	265	335	372	343	360	380	380	385	400X2
Dimension(mm)	A(mm)	121	148	172	196	210	255	230	280	433	463	540	630
	B(mm)	114	132	151	173	175	205	176	189	189	189	220	200
	C(mm)	19	23	26	29.5	34	37.5	39	41	50	50	80	80
	D(mm)	31	35	40	45	50	55	55	65	85	85	110	110
	Hmin(mm)	280	345	376	442	470	580	565	690	800	830	980	1000
Net weight(kg)		6.5	9.6	12	17.1	20.3	31.7	23.8	43.5	71.6	78.5	170	190
