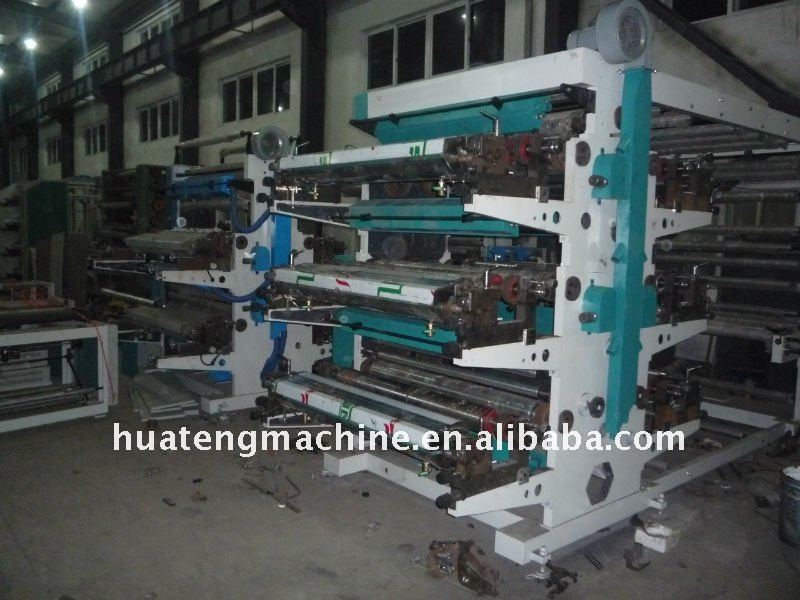

YT Letterpress printing machine

printing machine/printer/fast printing machine/new printing machine/SGS printing machine/CE printing machine/ISO printing machin - details see: https://www.machineto.com/yt-letterpress-printing-machine-10066928

Type:Flexographic Printer	Condition:New	Plate Type:Letterpress	Place of Origin:Zhejiang China (Mainland)
Brand Name:Huateng	Model Number:YT-4600-41600	Usage:Paper, plastic films, pp non woven fabric	Automatic Grade:Semi-Automatic
Color & Page:Multicolor	Certification:CE,ISO;CE;SGS	Usage::Paper, plastic film, non woven fabric printing,alunimum foil printing	Warranty:1 year
printing colors::2, 4, 6, or 8colors	Type::Flexographic Printer	Plate::Letterpress

contact supplier for YT Letterpress printing machine

Flexographic printing machine/high speed printing machine/good quality printing machine/CEstandard printing machine/Paper printing machine/plastic printing machine/suitable for opp, bopp,pvc plastic film printing

Printing machine Application:

----------------------------
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag printing, cellophane and roll paper printing, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, printing supermarket handbag, vest bag and clothes bag, etc.

Printing Machine Main Technical Parameter:

-----------------------------------------

TYPE		YT-4600-4color-flexographic printing press
Max.width of material		600mm
Max.printing width		560mm
Max.printing speed		50m/min
Max.Mechanical speed		60m/min
Max. unwinding and rewinding diameter of Roll Material		Φ450mm
Internal Diameter of Roll Core		φ76mm
Cylinder diameter		φ400mm(Customer can order other sizes)
Rang of Repeat Printing Length		191-914mm
Plate Thickness(Bothside adhesive included)		2.38mm
Accuracy of Registration	Vertical	+/-0.25mm
	Horizontal
Tension control range		0-25kg
Heating Power		7kw
Main motor power		11.5kw
Total power		17kw
Weight of Machine(film packing dimension)		3000kg
Machine dimension(L x W x H)(film packing dimension)		L4300×W1700×H2500mm
Wooden packing Dimension		L4450×W1850×H2650mm

Suitable printing substrate:	PVC:35~70μm
	OPP:20~70μm
	BOPP:20~60μm
	PE:35~100μm
	NY:20~50μm
	PET:20~60μm
	CPP:20~60μm
	PAPER:20~150g/square meter
	NON-WOVEN FABRIC:20-120GSM
