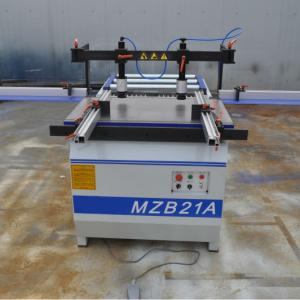

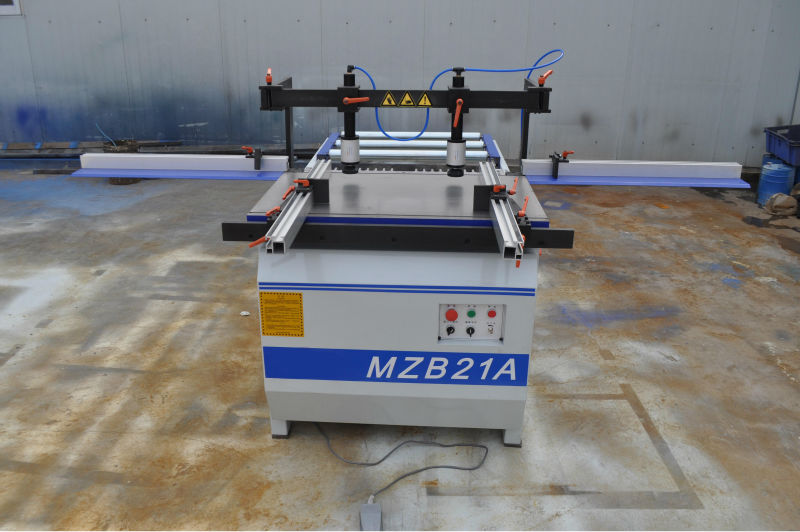

Woodworking machinery wood boring machine
Woodworking machinery wood boring machine, 1.Casting work table, 2.0-90 degree rotating, 3.New locking device - details see: https://www.machineto.com/woodworking-machinery-wood-boring-machine-10348173
| Condition:New | CNC or Not:Normal | Spindle Speed:2840r/min | Place of Origin:Shandong China (Mainland) |
| Brand Name:QDZD | Model Number:MZB21A | Voltage:380v 50hz 3phase(option) | Power(W):1.5kw |
| Weight:480kg | Dimension(L*W*H):1900*2600*1300mm | Certification:ISO9001 | Warranty:12 months |
| After-sales Service Provided:Engineers available to service machinery overseas |
Woodworking machinery wood boring machine
Features:
1.Suitable for all kinds of density boards,particle boards,based panels, pVC panels, organic glass plates and solid woodboards
2.Cast iron body structure of the base
3.Using high precision guide rail to ensure the stable easy operation
Specification:
MZB21A Technical parameters | |
| Maximum diameter of holes | 35mm |
| Depth of drilled holes | 0~60mm |
| Number of spindles | 21 |
| Center distance between spindles | 32mm |
| Maximum dimensions of piece to be drilled | 2500*920*70mm |
| Rotation of spindle | 2840r/min |
| Total motor power | 1.5kw |
| Suitable voltage | 380v 50hz 3phase |
| Air pressure | 0.5~0.8Mpa |
| Gas consumption for drilling ten panels per minute | 5L/min approximately |
| Overall size | 1900*2600*1300mm |
| Weight of the whole machine | 480kg |
| Height of working plat form off ground | 900mm |
| Packing size | 1100*1300*1400mm |
| Packaging Detail:plywood box or any you want |
| Delivery Detail:30 days after deposit (negotiable) |
