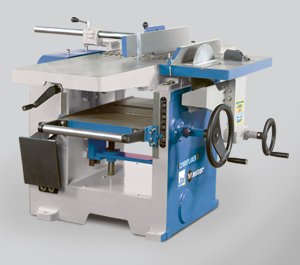

Wood planer thicknesser

combiplaner - details see: https://www.machineto.com/wood-planer-thicknesser-10354305

Condition:New	Type:Combination machine	Place of Origin:Gujarat India	Brand Name:JAI
Model Number:J-703


Model No.	J-701	J-702	J-703
	mm/inch	mm/inch	mm/inch
Surfacing capacity	330 / 13"	455 / 18"	610 / 24"
Max. planing width	305 / 12"	455 / 18"	610 / 24"
Thicknessing capacity	200 / 8"	200 / 8"	200 / 8"
Length of surface table	1220 / 48"	1550 / 61"	1550 / 61"
Rebating capacity	12.5 / ½"	12.5 / ½"	12.5 / ½"
Length of thickness table	660 / 26"	760 / 30"	915 / 36"
Feeding speed (feet per minute)	24	24	24
Cutter block speed (RPM)	4000	4000	4000
Standard cutter block-code No.	3B-W	3B-W	3B-W
Circular saw table size	610X355/	610X355/	610X355/
	24"x14"	24"x14"	24"x14"
Up/Down movement of cir. saw table	75/3"	75/3"	75/3"
Max. circular saw diameter	300/12"	300/12"	300/12"
Power required HP / RPM	3 / 1440	5 / 1440	5 / 1440
Approx. wt. of machine-kg.	500	750	850
STANDARD ACCESSORIES :- 3 Planer blades fitted in cutter block, mitre gauge, motor pulley, motor fixing plate, V.-belt guard, toolkit & m/c manual (S = Machine with circular saw attachment)
