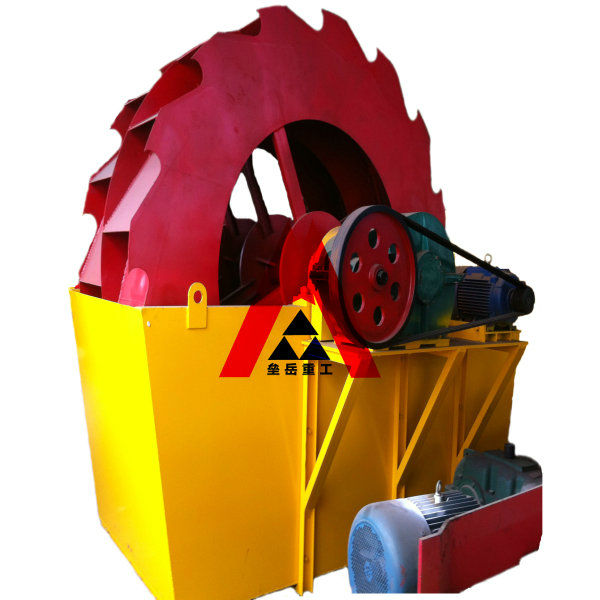

WHEEL SAND WASHING PLANT/EQUIPMENT
WHEEL SAND WASHING PLANT/EQUIPMENT, READY TO DELIVERY;, PROVIDE AFTER-SALE SERVICE;, ADVANCED TECHNOLOGY, REASONABLE PRICES. - details see: https://www.machineto.com/wheel-sand-washing-plant-equipment-10321084
| Condition:New | Motor Type:AC Motor | Power(W):11-30kw | Capacity(t/h):50-150t/h |
| Place of Origin:Shanghai China (Mainland) | Brand Name:LYG | Model Number:XSD2610 | Weight:10t,46.27t |
| Certification:ISO9001:2000 | Warranty:1 year | After-sales Service Provided:Engineers available to service machinery overseas | Helix diameter:2600mm |
| Selected size:Less than 10mm | Motor power:5.5kw | Length of tub:3220mm | Advantage:Easy operation and easy maintenance |
| Speed of helix:0.8r/min | Certificate:ISO9001-2000 | Water consumption:4-4.5t/h | Design:Latest generation |
WHEEL SAND WASHING PLANT/EQUIPMENT
Features of LSX / 2LSX / XSD Sand Washing Machine
1. High cleaning;
2. Reasonable structure;
3. High capacity and low power consumption;
4. With the three functions of sand washing, grading and dehydration;
5. The sand washing machine is 15°tilted layout;
6. The spiral is driven by motor and decelerator to continuously rotate, and the sand or small ores can be stirred and washed.
Application of LSX / 2LSX / XSD Sand Washing Machine
Being an important sand washing machine, it is widely used for sand washing, grading and dehydration in the fields of construction site, hydropower station and concrete dam sites, etc.
Technical Parameters of LSX / 2LSX / XSD Sand Washing Machine
| Model | Spiral Diameter (mm) | Flume Length (mm) | Selected Size (mm) | Production Capacity (t/h) | Spiral Speed (r/min) | Water Consumption (t/h) | Motor Power (t) | Weight (t) | Overall Dimension (mm) |
| LSX915 | 915 | 7585 | ≤10 | 100 | 21 | 11 | 10-80 | 3.48 | 8500×2950×1930 |
| 2LSX915 | 915 | 7585 | ≤10 | 200 | 21 | 2×11 | 20-160 | 5.2 | 8420×3765×2030 |
| LSX1115 | 1115 | 9782 | ≤10 | 175 | 17 | 15 | 20-150 | 10.18 | 10970×3945×4720 |
| 2LSX1115 | 1115 | 9782 | ≤10 | 350 | 17 | 2×15 | 40-300 | 17.94 | 10970×5250×4720 |
| XSD2610 | 2600 | 3220 | ≤10 | 50 | 0.8 | 5.5 | 4-4.5 | 2.7 | 3220×2125×2670 |
| XSD3016 | 3000 | 3810 | ≤10 | 80 | 0.8 | 7.5 | 16.30 | 3.2 | 3400×2615×2800 |
| Packaging Detail:Exporting standard ,main machine in container,motor and spare parts in wooden cases. |
| Delivery Detail:25 working days after receiving prepayment |
