Hot Sale Ball Grinding mill, 1.ISO9001-2008;, 2.Perfect after-sale service;, 3.Professional Technology;, 4.Low Consumption - details see: https://www.machineto.com/welline-best-buy-ball-grinding-mill-for-sale-10314249

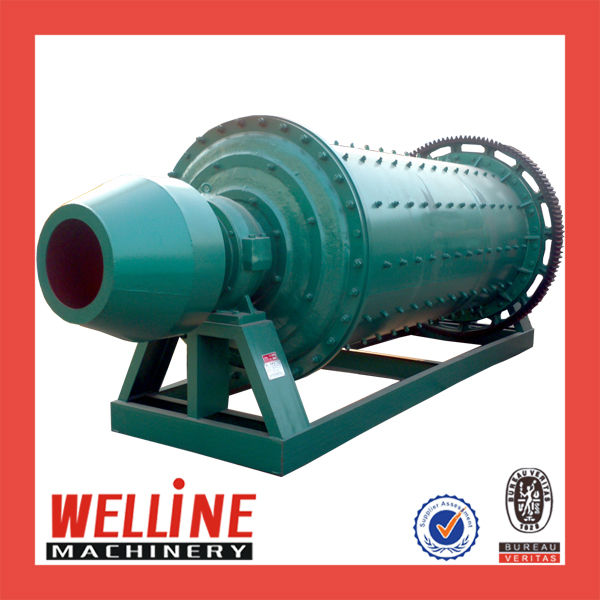

BV Audited WELLINE Company made Good Performance ISO9001 ball grinding mill

Ball Mill Usage and Application

The Ball mill is widely applied in mineral classification, cement,chemical industry,etc.

It can grind all kinds of rocks and grindable materials. Thisball mill has two ways of grinding: The dry process and wet process. Ourball mill has been increased about 20% and unit product power consumption has been reduced 10%-12% down.

Ball Mill Features

Ball mill is mainly composed of charging and discharging, cyclone and rotation parts. Hollow axis is made of steel parts with a lining replacable. Major rotation gear, machined by rolling wheel of casting, is lined with wearing plate with fine wear-resistingproperty. This makes theball grinding mill runs stably and reliably.

Ball Mill Structure

Ball mill is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The ball mill is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dryball millsand wetball millsfor choice.

Ball mill Technical data:

Model	Rotary Speed (r/min)	Ball load (t)	Feeding Size(mm)	Discharging Size (mm)	Production (t/h)	Power (kW)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5
900×2100	38	1.3-1.4	≤15	0.075-0.83	0.7-3.5	18.5
900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	30
1200×2800	32	3.3-3.5	≤25	0.075-0.6	2-6	30
1200×4500	32	7	≤25	0.074-0.4	1.6-5.8	45
1500×3000	27	8	≤25	0.074-0.4	2-5	75
1500×3500	27	6.75-6.4	≤25	0.075-0.4	3-7	75
1500×4500	27	14	≤25	0.074-0.4	3.5-12	110
1500×5700	27	15	≤25	0.074-0.4	3.5-8	115
1830×3000	24	18	≤25	0.074-0.4	4-10	130
1830×3600	24	10.6-11.35	≤20	0.075-0.4	5-22	130
1830×7000	24	25	≤25	0.074-0.4	7.5-17	210
2100×3600	22	14-15.2	≤25	0.075-0.4	15-36	370
2200×5500	21	30	≤25	0.074-0.4	10-22	210
2200×6500	21	31	≤25	0.074-0.4	14-26	380
2200×7500	21	33	≤25	0.074-0.4	16-29	380
2400×3000	20.6	15.5-16.6	≤25	0.075-0.4	22-24	245
2400×4500	21	30	≤25	0.074-0.4	8.5-60	380
2700×3600	20.6	39	≤25	0.074-0.4	12-70	400
2700×4000	20.7	40	≤25	0.074-0.4	12-80	400
2700×4500	20.7	48	≤25	0.074-0.4	12-90	430
3200×4500	18	65	≤25	0.075-0.4	accordingly	800

*Any change of technical data shall not be advised additionally.
