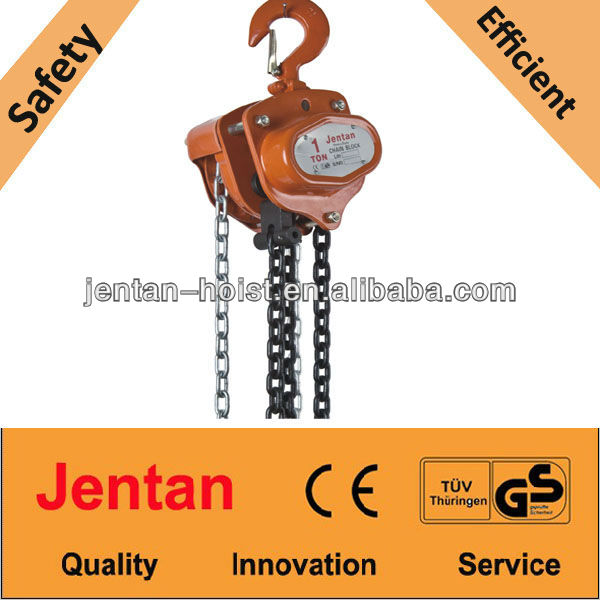

VC-B Chain Pulley Block
VC-B chain pulley block, 1.capacity:0.5T-50T, 2.CE,GS Certificate, 3.Strong R&D Design, 4.can do OEM.High quality - details see: https://www.machineto.com/vc-b-chain-pulley-block-10096670
| Condition:New | Place of Origin:Zhejiang China (Mainland) | Brand Name:TOYO or OEM | Model Number:D type Chian Hoist |
| Usage:Lifting equipment | Power Source:Hand Chain | Sling Type:Chain | Maximum Lifting Weight:50T |
| Maximum Lifting Height:12M | Lift Speed:None | Certification:CE,GS,ISO | Warranty:one year |
| After-sales Service Provided:Overseas third-party support available | Warranty Period:1 Year | Safty Factor:4 to 1 | Proof Load:Individually Proof Tested to 1.25 times of Working Load Limit |
| Load Chain Color:Black | Chain:80 class | Hook Material:Alloy Steel | Hand Chain:Galvanized |
| Certifications:CE&GS&ISO9001 | Color:Red/Yellow |
VC-B Type chain pulley block
1.capacity:0.5T-50T
2.CE,GS Certificate
3.Strong R&D Design
4.can do OEM.High quality
| Model | VC-A 0.5 | VC-A 1 | VC-A 1.5 | VC-A 2 | VC-A 3 | VC-A 5 | VC-A 10 | VC-A 20 | VC-A 30 | VC-A 50 | ||
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | ||
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Running test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | 45 | 75 | ||
| No.of falls of load chain | 1 | 1 | 1 | 1 | 7.1 | 2 | 4 | 8 | 12 | 24 | ||
| Load chain diameter(mm) | 5 | 6.3 | 7.1 | 8 | 9 | 9 | 9 | 9 | 9 | |||
| Dimension(mm) A | 129 | 151 | 150.5 | 161.5 | 150.5 | 161.5 | 207 | 215 | 350 | 410 | ||
| B | 136 | 145 | 164.5 | 187 | 164.5 | 211 | 398 | 650 | 680 | 965 | ||
| C | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1380 | 1950 | ||
| Net weight(kg) | 8.4 | 12 | 16.2 | 20 | 24 | 41 | 79 | 193 | 220 | 1092 | ||
| Packing(L*W*H)(cm) | 22*14*15 | 25*19*16 | 33*24*16 | 33*24*19 | 34.5*24*16 | 40*30*19 | 48*42*18.5 | 78*68*20 | 85*67*30 | 110*100*130 | ||
| Packaging Detail:1 set per carton/wooden case with pllet or customized. |
| Delivery Detail:With 30-45 days after deposite |
