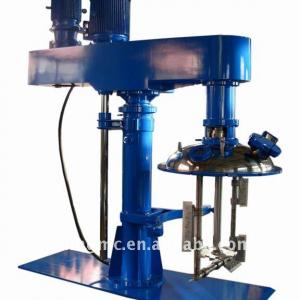

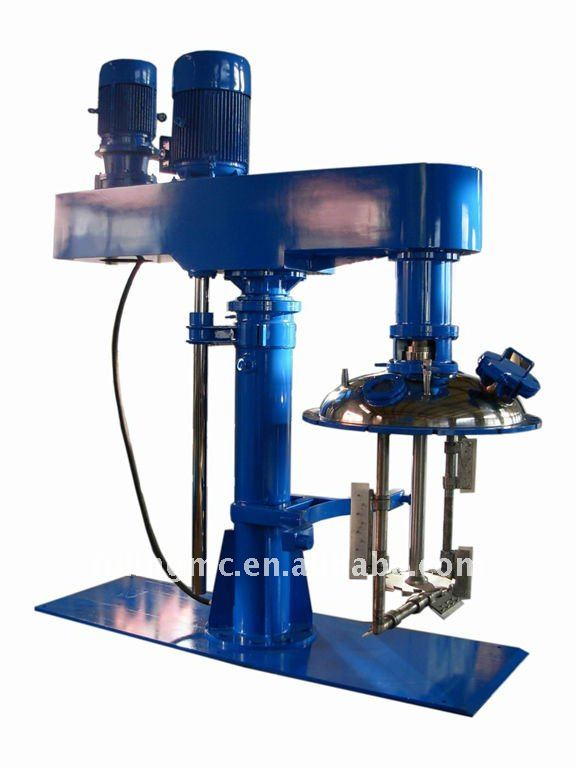

double shaft mixer with vacuum, low speed shaft with scraper, inverter speed control, up and down by hydraulic power - details see: https://www.machineto.com/vacuum-paint-mixer-10298044

Wider application of this machine in the chemicals, building materials, electronics, coatings, food, pharmaceutical and other industries, applicable in 10000-1000000 cps viscosity value of the material,It is a liquid fluid or solid-liquid mixing, dispersion, response, homogeneous ideal equipment

This series mixer composed by seven parts, namely: the body, lift and down system, low-speed mixing system, high-speed mixing system, mixing kettle, clamp, electric control system, vacuum seal system if need vacuum operated.

There is two stirring shaft in cylinder which is A high-speed and a low-speed, the principal axis are all in the center of container,It’s Concentric double shaft. The high speed axis rotate speed adjusted by frequency conversion,the material will be high cut shearing force by saw tooth type impeller,to axial flow. Low speed impeller scrape and mix the material round the wall of container,to tangential flow slowly, there is scraper on the impeller to scrape the material down from the roller coating. This assembled machine formed stretches of flows in the whole container, materials can be effectively dispersed mixed

Main Technical Paramete:
	item / type TSJ-100 TSJ-200 TSJ-500 TSJ-800 TSJ-1000 Cylinder Volume (L) 100 200 500 800 1000 Low speed shaft motor power(kW) 1.1 2.2 5.5 7.5 11 Low speed axis rotate speed(rpm) 29 29 29 29 29 High speed shaft motor power(kW) 4 7.5 22 30 37 High speed axis rotate speed(rpm) 0-1500 0-1500 0-1500 0-1500 0-1500 Travel height(mm) 700 800 1000 1100 1200
