Ultra-fine ring micro powder mill

Ultra-fine ring micro powder mill, 1.High efficiency, energy saving, 2.Wearing parts long service life, 3.High safely - details see: https://www.machineto.com/ultra-fine-ring-micro-powder-mill-10313950
Condition:NewType:HGM series Three-rings Ultra-fine MillMotor Type:AC MotorPower(W):Main Engine:55 Powder Concentrator:18.5 Air Blower:45
Capacity(t/h):350~2500(kg/h)Place of Origin:Shanghai China (Mainland)Brand Name:PioneerModel Number:HGM 80
Dimension(L*W*H):11.9*2.7*5.8 (mm)Weight:Main concentrator weight:7000kgCertification:IOS9001:2000Warranty:1 year only main engine
Material:High quality steel plateUse:gravel Ultra-fine ring micro powder millname:HGM series Three-rings Ultra-fine MillShape:Cubic shaped
Crafts:best of Ultra-fine ring micro powder millColor:White about Ultra-fine ring micro powder mill
Ultra-fine ring micro powder mill
contact supplier for Ultra-fine ring micro powder mill


Ultra-fine ring micro powder mill

HGM series three-rings ultra-fine mill rings and medium is the world leading grinding equipment which adopts the Pioneer advanced milling technology and is especially designed for processing ultra-fine mill rings and mediumpower or grinding any non-flammable and non-explosive materials such as quartz, feldspar, calcite, limestone, talc, ceramics, marbale, granite, dolomite, bauxite, iron ores, barite, bentonite, calcium, kaolin, palter, mica, graphite, etc. The size of the finished product can be adjusted between 325-3250mesh.

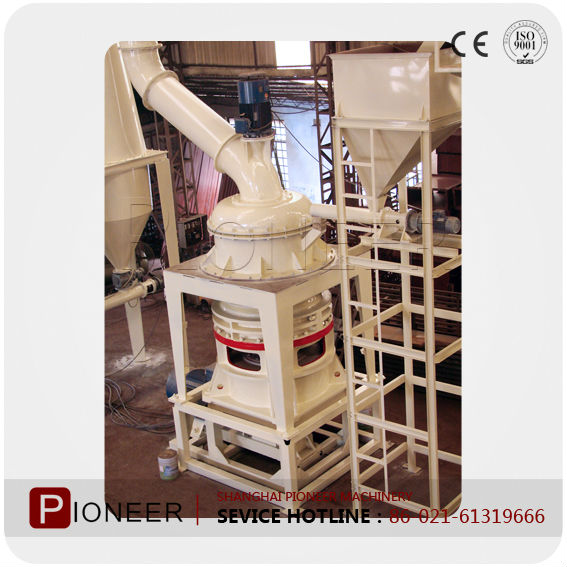

About Ultra-fine ring micro powder millPicture

About Ultra-fine ring micro powder millPicture in production field

About Ultra-fine ring micro powder millPicture in workshop

About our company_Shanghai Pioneer Machinery Manufactering Co.,Ltd.

Ultra-fine ring micro powder mill Technical Date

MODEL

HGM60HGM80HGM100

AVERAGE DIAMETER(mm)

6008001000

piece

ROLLER152127
RING OF ROLLER222

FEEDING SIZE(mm)

≤10≤10≤10
μm5-455-455-45
MESH3250-3253250-3253250-325

CAPACITY(kg/h)

350-2500600-4000900-6000

MOTOR POWER

(kw)

MAIN ENGINE375590
OWDER CONCENTRATOR1118.530
AIR BLOWER304575
VIBRATING FEEDER0.060.060.15
DISCHARGE VALVE0.751.11.1

OVERALL SIZE(L*W*H)(m)

10*2*5.511.9*2.7*5.814.5*3.8*6.3

The company held a weekday on Saturday

Our passionate management teamwhich is committed to supply more economic, more convenient, better quality production plants for our customers will leadShanghaiPIONEERinto international machinery manufacturing and designing company.

Ultra-fine ring micro powder mill
Packaging Detail:plywood or standards
Delivery Detail:3 weeks
