Sand washing machine for sale, reasonable structure, large processing capacity,, low energy consumption - details see: https://www.machineto.com/top-quality-sand-washing-machine-for-sale-10320539

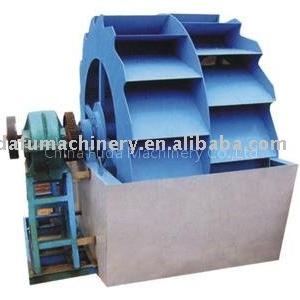

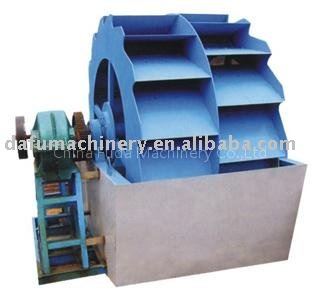

Sand washing machine for sale

Sand washing machineis widely used for cleaning the crushed materials in the following fields: quarry, mining, building-site, construction materials, chemical industry, water conservancy and hydropower, cement mixture station and so on.
Sand washer has reasonable structure, large processing capacity, low energy consumption, water saving, convenient maintenance, fewer sand loss.

Sand washing machine working Principle:
The sand and gravel flow into washing launder from feeding launder, the impeller in the water groove move like a circle transmitted by electric motor and decelerator, to churn, overturn and finally discharge the purity sand, the dust and powder will be left in the launderr.

Sand washer features
It is of simple structure. The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.

Specifications of Sand Washing Machine

Models XSD2610 XSD2816 XSD3016 Impeller Specification (mm) (D×W) Φ2600×1000 Φ2800×1600 Φ3000×1600 Impeller Speed (mm) 1.178 1.177 1.179 Capacity (t/h) 20~50 30~60 50~120 Feed Size (mm) ≤10 ≤10 ≤10 Water Consumption (mm) 20~60 50~100 70~120 Electric Motor Power (KW) 5.5 11 15 Decelerator Models ZQ50-50-I-Z ZQ60-50-I-Z ZQ65-50-I-Z Overall Dimensions (L×W×H) 3255×1982×2690 3540×3000×2880 3845×3000 ×3080
