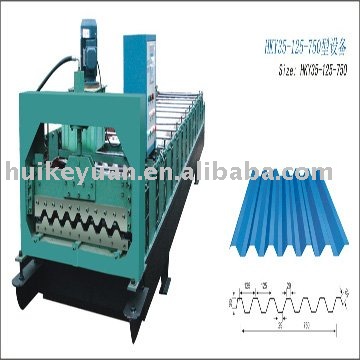

steel roll forming

roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,uncoiler . - details see: https://www.machineto.com/steel-roll-forming-10307231
Place of Origin:Hebei China (Mainland)Brand Name:HKYModel Number:HKY35-125-750 roll forming machineCOLOURE:green
Certification:CEPayment system:T/T L/CBrand name:HKYControl system:PLC
minimum order quantity:1 setPort:Tianjintype:tile forming machineMain moter power:7.5KW
Hydraulic station power:4KW
steel roll forming
contact supplier for steel roll forming


We are professional manufacture of roll forming machines for roofing system ,drain system ,and kinds of construction materials .We have the advanced ability of design and manufature .We will supply the high quality products and the first class service

Main moter power7.5KW
Hydraulic station power4KW
Hydraulic oil pumpCB-E310
SprocketP-25.4
Roller station15
Yield strength32MPa
Diameter of principal axis70MM
Material of roller45#steel hard chrome plating
Processing speed8-10m/min
Thickness0.3-1mm
Installation dimension about(L*W*H)9*1.5*0.8M
Wave height35mm
Wave length125mm
Cover width750mm
Material of bladeCr12
Total weight5.5T

steel roll forming
Packaging Detail:as the client's request
Delivery Detail:one month after we received the 30% payment
