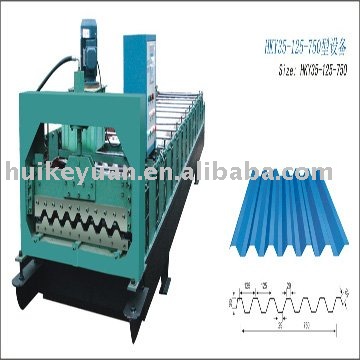

steel roll forming

roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,uncoiler . - details see: https://www.machineto.com/steel-roll-forming-10307182

Place of Origin:HEB,Hebei,China China (Mainland)	Brand Name:HKY	Model Number:HKY35-125-750 roll forming machine	COLOURE:green
Certification:CE	type:tile forming machine	Port:Tianjin	qulity system:ISO9001:2008
Payment system:T/T L/C	Brand name:HKY

Main moter power		7.5KW
Hydraulic station power		4KW
Hydraulic oil pump		CB-E310
Sprocket		P-25.4
Roller station		15
Yield strength		32MPa
Diameter of principal axis		70MM
Material of roller		45#steel hard chrome plating
Processing speed		8-10m/min
Thickness		0.3-1mm
Installation dimension about(LWH)		91.50.8M
Wave height		35mm
Wave length		125mm
Cover width		750mm
Material of blade		Cr12
Total weight		5.5T

recent years, our products at large scales have been sold to more than 50 countries and regions, for instance, France, Britain, Australia, The United States, Kazakhstan, Malaysia, Nigeria, Rumania, Albania, etc, and has won the universal appreciation and commendation from the customers all over the world.
