1. TUV certification, 2. C10+C21, 3. feeding width 1250mm, 4. 14 roller stations, 5. 7800*1800*1700mm - details see: https://www.machineto.com/russia-type-double-layer-roof-machine-hebei-10085973

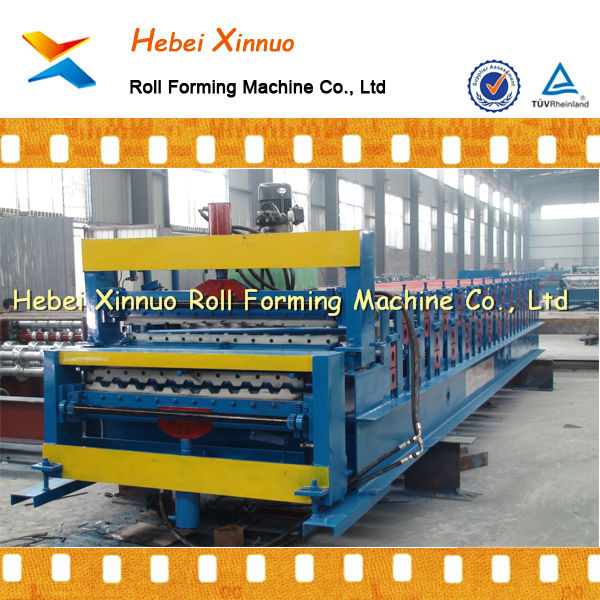

C10+C21 DOUBLE LAYER ROOF PANEL ROLL FORMING MACHINE

HOT SALE!!!

This is a popular type for roof panel in Ruissia.

One machine produce two profiles.

Feeding width: 1250mm---Effective width: 1050mm

Technical parameters:
1	Name of commodity & specification			C10+C21 roof panel roll forming machine
2	Main motor power			4kw, 3 phase
3	Hydraulic motor power			4kw
4	Hydraulic Pressure			10-12MPa
5	Voltage			380V /3phase/ 50 HZ (or as your requirement)
6	Control System			PLC Delta Inverter
7	Main Frame			350mm H-Beam
8	Backboard Thickness			16mm
9	Chain Size			20mm
10	Feeding Material			color steel coils
11	Feeding Thickness			0.3-0.8mm
12	Feeding Width			1250mm
13	Effective width			1050mm
14	Productivity			8-12m/min
15	Roll Station			13-14
16	Roller Diameter			80mm
17	Roller material			45# steel
18	Cutter material			Cr12 , quenched
19	Cr-Plating Size			0.05mm
20	Overall Size			7800×1800×1700mm
21	Total Weight			4T
22	Components			Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set
23	Workflow			Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
24	Package			nude in the container
25	Minimum order quantity			1 set
26	Payment terms			T/T(30% T/T pay in advance, the remaining 70% pay before ship)
27	Delivery time			30 working days later after receiving the deposit
All technical parameters can be changed, according to user's need.

C21 profile drawing:

C10 profile drawing:
