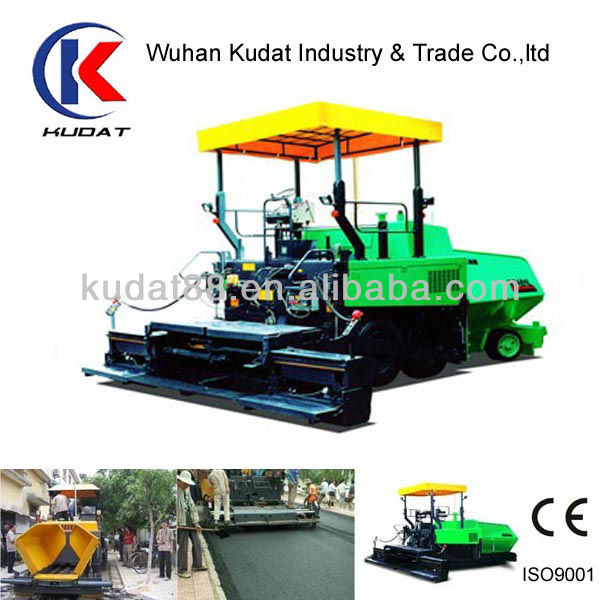

RP602L Paver

Asphalt Paver:, 1)Paving width: 2.5-6.0m;, 2)Engine: 93kw;, 3)Theoretical Productivity Capacity: 400t/h;, 4) Multifunction. - details see: https://www.machineto.com/rp602l-paver-10118546

Condition:New	Production Capacity:400t/h	Power(W):93kw	Max. Paving Thickness:380mm
Paving Width:2.5-6.0	Place of Origin:Hubei China (Mainland)	Brand Name:China Kudat	Model Number:RP602L
Dimension(LWH):6230x2500x3855mm	Weight:15.8-21.5ton	Certification:ISO9001	Warranty:One yearand life long after sale service
After-sales Service Provided:Engineers available to service machinery overseas	Basic Working width:2.5m	Max. working width:6.0m	Paving speed:18m/min
Traveling speed:18Km/h	Hopper Capacity:13ton	Engine model:Shangchai D4114ZG4B	Engine Speed:2300rpm
Gradient Ability:20%	Diesel Tank Capacity:230L	Smoothness:3Mm/3m

RP602Multi-Function Asphalt Concrete Paver is a construction machine mainly used for the paving projection on the road base and surface for highway of various kinds of material. This type of machine has the most advanced technology, such as Micro-computer-controlling system, ultra sonic sensor, electric auto-leveling system, tamper and which makes the machine features with the same quality and reliability as that of the imported machine. Therefore,RP602becomes the ideal equipment for the paving job on stabilized soil for road base and asphalt concrete for road surface.

Item	Unit	RP602L
Basic Paving Width	m	2.5
Max Paving Width	m	6
Max Paving Thickness	mm	380
Paving Speed	m/min	0~18
Travel Speed	km/h	0~18
Theoretical Productivity Capacity	t/h	400
Hopper Capacity	t	13
Gradeability	%	20
Pavement Evenness	mm/³m	3
Transverse Leveling Accuracy	%	±0.03
Centre Crown Ratio	%	0~3
Engine Model		Shangchai D4114ZG4B
Engine Power	kw	93
Engine Speed	r/min	2300
Diesel Tank Capacity	L	230
Machine Weight	t	15.8~21.5
Overall Dimensions	mm	6230×2500×3855
Tamper Vibration Frequency	Hz	/
Screed Heating		Gas Heating
Auger and Conveyor Control		Automatic Control by Ultrasonic Sensors
Automatic Leveling Control		Simulation Control
