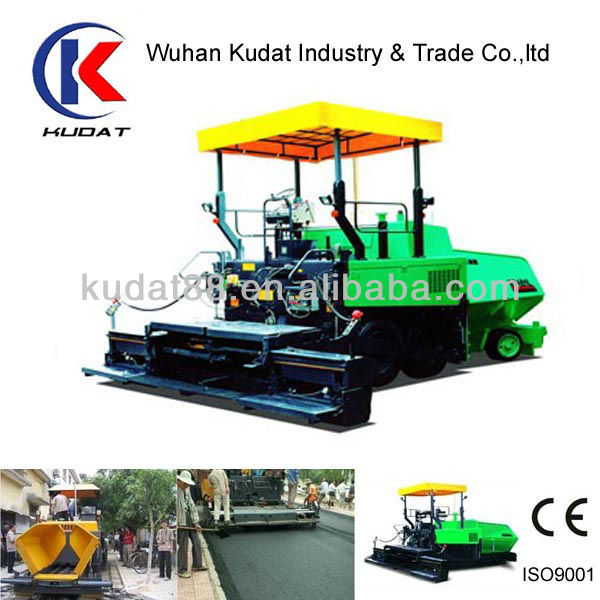

RP602L Mini Asphalt Paver
Asphalt Paver:, 1)Paving width: 2.5-6.0m;, 2)Engine: 93kw;, 3)Theoretical Productivity Capacity: 400t/h;, 4) Multifunction. - details see: https://www.machineto.com/rp602l-mini-asphalt-paver-10118520
| Condition:New | Production Capacity:400t/h | Power(W):93kw | Max. Paving Thickness:380mm |
| Paving Width:2.5-6.0 | Place of Origin:Hubei China (Mainland) | Brand Name:China Kudat | Model Number:RP602L |
| Dimension(L*W*H):6230x2500x3855mm | Weight:15.8-21.5ton | Certification:ISO9001 | Warranty:One yearand life long after sale service |
| After-sales Service Provided:Engineers available to service machinery overseas | Basic Working width:2.5m | Max. working width:6.0m | Paving speed:18m/min |
| Traveling speed:18Km/h | Hopper Capacity:13ton | Engine model:Shangchai D4114ZG4B | Engine Speed:2300rpm |
| Gradient Ability:20% | Diesel Tank Capacity:230L | Smoothness:3Mm/3m |
RP602Multi-Function Asphalt Concrete Paver is a construction machine mainly used for the paving projection on the road base and surface for highway of various kinds of material. This type of machine has the most advanced technology, such as Micro-computer-controlling system, ultra sonic sensor, electric auto-leveling system, tamper and which makes the machine features with the same quality and reliability as that of the imported machine. Therefore,RP602becomes the ideal equipment for the paving job on stabilized soil for road base and asphalt concrete for road surface.
| Item | Unit | RP602L |
| Basic Paving Width | m | 2.5 |
| Max Paving Width | m | 6 |
| Max Paving Thickness | mm | 380 |
| Paving Speed | m/min | 0~18 |
| Travel Speed | km/h | 0~18 |
| Theoretical Productivity Capacity | t/h | 400 |
| Hopper Capacity | t | 13 |
| Gradeability | % | 20 |
| Pavement Evenness | mm/3m | 3 |
| Transverse Leveling Accuracy | % | ±0.03 |
| Centre Crown Ratio | % | 0~3 |
| Engine Model | Shangchai D4114ZG4B | |
| Engine Power | kw | 93 |
| Engine Speed | r/min | 2300 |
| Diesel Tank Capacity | L | 230 |
| Machine Weight | t | 15.8~21.5 |
| Overall Dimensions | mm | 6230×2500×3855 |
| Tamper Vibration Frequency | Hz | / |
| Screed Heating | Gas Heating | |
| Auger and Conveyor Control | Automatic Control by Ultrasonic Sensors | |
| Automatic Leveling Control | Simulation Control |
| Packaging Detail:by sea required |
| Delivery Detail:35 days |
