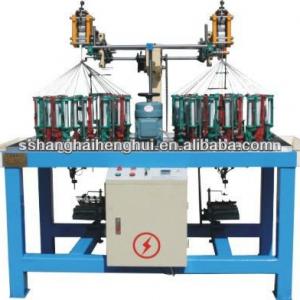

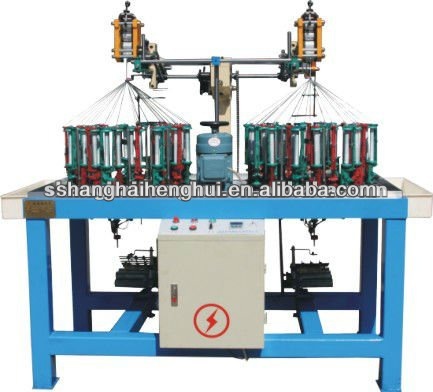

ribbon lace braiding machine

best price, 80 series , 90series ,110series ,130series,160series ,168series ,224series,384series,500series,biggest in China. - details see: https://www.machineto.com/ribbon-lace-braiding-machine-10272262
Place of Origin:Jiangsu China (Mainland)Brand Name:HenghuiModel Number:90 series ,110 series ,130 series ,160serieshorn gear size:80mm,90mm,110mm,130mm,168mm,224mm,300mm,500mm
material:sepcial cast ironmodel:3spindles to 200spindlesproductions:braided ropes,lace,cable ,glassfiber sleeving,cord,band,stringspinle and bobbin material:nylon66
motor and inverter:Danvers Groupservice:agents in different countriesMachine Type:Braiding MachineCertification:CE
Product:braided ropes
ribbon lace braiding machine
contact supplier for ribbon lace braiding machine


NO.

ITEMS

90series

UNIT PRICE

FOB USD

DETAILS


1

High speed 4 head 16 spindle braiding machine

Rectangle type

Square type with the take-up spool

Bobbin size

Total length 157mm

Inner length 139mm

Dia of disk 48mm

Inner hole 13mm

Horn gear 90mm

Spindle speed 106 RPM

Motor 0.75kw

Pitch size1-6mm

Dimension

1.44X0.75X1.5meters

Weight 550kgs

green color

from 3 spindle /carrier to 200 spindle/carrier machines!

Merit of braiding machine :

Adopting frequency control ,possess auto-stop system ,wrapped centre yarn feeder ,low waste and high production.low wear and tear of spare parts,the work table runs stable,easy to maintain and operate.

ribbon lace braiding machine
Packaging Detail:plywood case
Delivery Detail:10-30days
