small ball mill for sale:, 1.high grinding ratio, 2.low comsuption, 3.CE&ISO certificate, 4. easy to do maintenance - details see: https://www.machineto.com/reliable-performance-small-ball-mill-for-sale-10314802

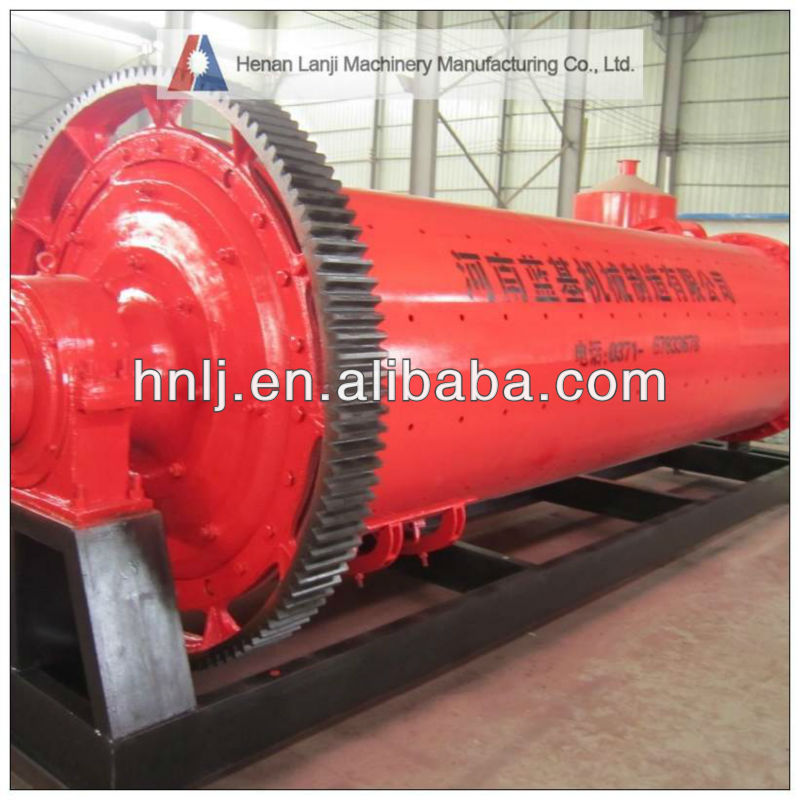

Reliable performance small ball mill for sale

1. Brief introduction of ball mill

Ball Mill is mainly used to grind materials in mineral,cement,refractory,chemical industry, etc.Ball Mill has dry and wet ways.When wet Ball Mill works,certain water and other liquid will be added into materials to increase flowability of materials,so the capacity is increased. When dry Ball Mill works,capacity is affected because material flowability is reduced,so absorbing wind device is needed on the outlet of Ball Mill,and then negative pressure is formed in the Ball Mill to increase flowability of material, so the capacity is increased.

2 . Features of Ball Mill

1).Large application range,simple structure and convenient maintenance.

2).Large capacity and continuous work are very obvious.

3).Barrel lining and grinding media can apply various abrasive materials.

4).Installation and adjustment are very convenient and easy to be operated.

3.Ball Mill Technical Data

Model	shaft rotation speed(r/min)	Ball load (t)	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Power (KW)	Weight (T)
Φ900×1800	38	1.5	≤20	0.075 -0.89	0.65 -2	18.5	3.6
Φ900×2100	38	1.3-1.4	≤15	0.075 -0.83	0.7-3.5	18.5	3.9
Φ900×3000	38	2.7	≤20	0.075 -0.89	1.1-3.5	22	4.5
Φ1200×2400	32	3.8	≤25	0.0745-0.6	1.5-4.8	30	11.5
Φ1200×2800	32	3.3-3.5	≤25	0.0745-0.6	2-6	30	13
Φ1200×4500	32	7	≤25	0.074 -0.4	1.6-5.8	45	13.8
Φ1500×3000	27	8	≤25	0.074 -0.4	2-5	75	17
Φ1500 ×3500	27	6.75-6.4	≤25	0.075 -0.4	3-7	75	17.5
Φ1500×4500	27	14	≤25	0.074 -0.4	3.5-12	110	21
Φ1500×5700	27	15	≤25	0.074 -0.4	3.5-8	115	24.7
Φ1830×3000	24	18	≤25	0.074 -0.4	4-10	130	28
Φ1800×3600	24	10.6-11.35	≤25	0.075 -0.4	5-22	130	33.5
