Raymond Powder Mill, ISO certificate, Over 30years of rich specilization, 80-325 mesh, high efficiency, low power consumption - details see: https://www.machineto.com/raymond-grinder-powder-mill-10314228

Introduction of our company:

Zhengzhou Machinery Raymond Mill adopt the advanced design along with other congeneric products,and improve the old devise at the based of large-scale Raymond mill, our product through the ISO 9001 and sold at home and abroad, we have more than 30 years experience and gained a lot of praise.

Raymond Mill Particular Description:

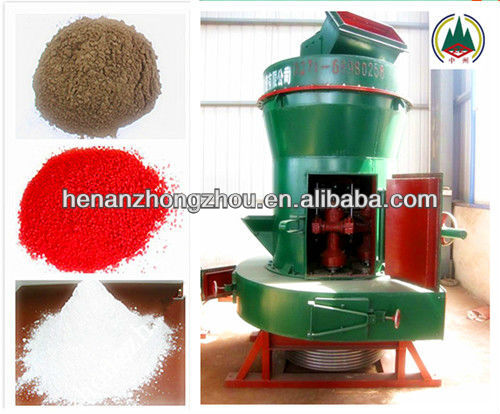

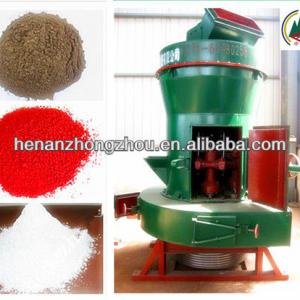

Raymond Mill is a high capacity fine powder manufacturing apparatus, which is applied to mine, chemical industry, building, metallurgy and other industries. The production of this machine according to to your request can up to above 95% fit your request. At the same time, the Raymond mill is a set of machine, which has a vertical structure, so it is a whole production line, you can get the packed powder from lump materials.

The airflow of Raymond mill flew in the “fan-mill shell-cyclone separator-fan”, which formed a cycling Aires there is a little dust, the operation workshop is clean and the environment is no pollution, it can reach the National dust emission standard.

Raymond Mill Main Structure:

This type is mainly include mainframe,analizer,blower,finished product cyclone separator,fineness whirlwind powder collectorand the air hose,therein,the mainframe is consist of rack,spiral into wind,scraper knife,gringding roller,bull ring,cover piece and the motor.

Raymond Mill Working Process:

The big material should through jaw crusher smash to required size,then be transfered to mainframe for grinding with uniform quantitative,after gringding,the powder be took away by blower air,then through analyzer the fitable powder into cyclone collector,after isolate collector,you can get the final powder.At the same time,the air gose back to blower through the duct.The airflow system of this machine is airtight circulation,and circulate under the positive and negative pressure condition.Also you can feeder by manpower if you donot need elevator,bin,vibrating feeder. In gringding indoor,because of the gringding material has certain water content,it will cause some heat,which makes blowing rate increase,we have to adjust the air duct between blower and mainframe to achieve airfllow balance,certainly the redundant air discharge into the environment after purification.The sack should shake frequently so as to discharge the exhaust gas preferably.

1.Host machine working process is that the central shaft moves getting through efferent device,the head of the shaft contected to plum blossom frame,there is grinding roller device which above the frame forms swinging pivot,it turns around the center,at the same time the gringding roller not only turns around the bull ring,but also turns by itself with the rubbing effect.

2.The analyzer drives the wheel on the blade rotation,which can play a role to separate the powder.

3.When the airflow powder enter into the collector ,it has high rotation speed,while the powder separate ,the airflow,form a rotating upward cylinder,then the powder drop down and be collected.

4R3216 Raymond Mill Specification and Technical Parameter:

Model	Max. feeding size(mm)	Out put size (mm)	Capacity (ton/hour)	Main motor power (kw)	Overall size (mm)	Total weight (t)	materials of grinding roller and ring
4R3016	20	0.125-0.004	1.5-5.5	37	7500*5000*5500	11	Mn13
4R3216	20	0.125-0.004	2-6	37	9900*5800*8600	15.7	Mn13

Raymond mill cautions:

1. In order to make sure the machine work well,there will be a “equipment maintenance safety operation system”to guarantee raymond mill safetly work for a long time,also there should be necessary mantenance tools ,grease and corresponding parts.
2. You would better change the grinding roller after using above 500 hours, clean the antifriction bearing,and replace the damaged parts,you can chose grease gun or manual petrol pump.
3. In the process of using raymond mill,there should be special person be responsible to watch over,the operation person should have certain technical level.Before installing,there should be technical training for the operation person to make them clearly about the princeple performance and the operating rules.
4. After using one year,the overhaul is necessary,including grinding roller,bull ring and scraper knife,before and after using grinding roller,the connect bolt and nut should be checked up carefully to see if there is any loose phenomenon and if the grease are enough.
