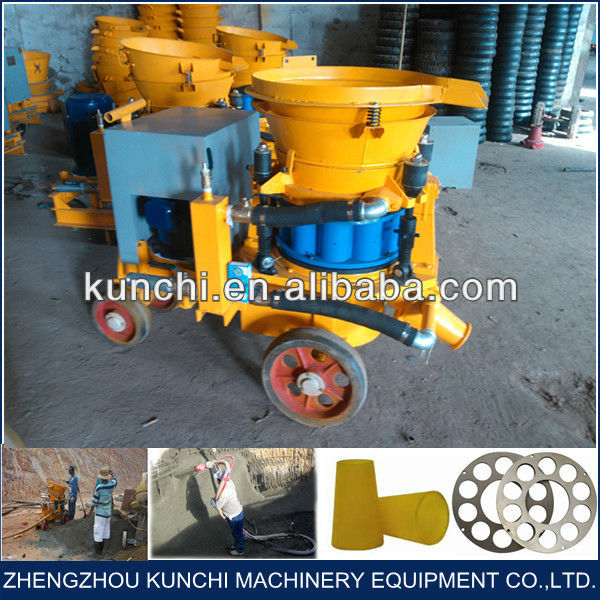

Shotcrete machine

Introduction of shotcrete machine :

Shotcrete process is to use compressed air to convey the predampened mix through delivery hose to the nozzle to project the material onto the sprayed surface under high velocity,

and then to form concrete support layer after the projected material coagulates and hardens. With simple technology, special effect, economy cost, flexibility and high construction efficiency,

shotcrete technology has widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operations, hydropower projects and slope stabilization, etc.

and showing prosperous future.

Features of shotcrete machine :

1Non adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

2Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

3Fourpoint clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

Application of shotcrete machine :

Shotcreting for tunnels, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, etc.

Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.

Refractory spraying and repair for industrial kilns or kilns’ inner liner.

Dry-mix shotcrete machine series:

Model	PZ-5	PZ-7	PZ-9
Production capacity	5m³/h	7m³/h	9m³/h
Concrete mixture ratio	1:3-5C/A	1:3-5C/A	1:3-5C/A
Water-cement ratio	≤0.4	≤0.4	≤0.4
Max conveying distance	Level: 200m; Vertical: 50m	Level: 200m; Vertical: 50m	Level: 200m; Vertical: 50m
Max aggregate size	Φ20mm	Φ20mm	Φ20mm
Working wind pressure	0.2-0.4Mpa	0.6-0.8 Mpa	0.6-0.8 Mpa
Air consumption	7-8 m³/min	7-8 m³/min	8-10m³/min
Feeding height	1.1m	1.1m	1.1m
Motor power	5.5kw	7.5kw	7.5kw
Voltage	380V	380V	380V
Machine size	1520*820*1180mm	1600*900*1370mm	1600*900*1370mm
Machine weight	700kg	800kg	900kg

Wet-mix shotcrete:

Wetmix concrete spraying machine has the advanced concrete spraying technique, developed from our PZ series dry-mix shotcrete and incorporated the advantages of wet

mix shotcrete. Today, it is a universal concrete Concrete spraying machine for the processing of wet or dry mix.

Model	KSP-5	KSP-7	KSP-9
Production capacity	5m³/h	7m³/h	9m³/h
Concrete mixture ratio	1:3-5C/A	1:3-5C/A	1:3-5C/A
Water-cement ratio	≤0.4-0.45	≤0.4-0.45	≤0.4-0.45
Max conveying distance	Level: 30m; Vertical: 20m	Level: 30m; Vertical: 20m	Level: 30m; Vertical: 20m
Max aggregate size	Φ20mm	Φ20mm	Φ20mm
Working wind pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
max.air consumption	12 m³/min	12m³/min	12m³/min
Feeding height	1.25m	1.3m	1.3m
Motor power	5.5kw	7.5kw	7.5kw
Voltage	380V	380V	380V
Machine weight	700kg	800kg	900kg

Photo show:

Parts:

Machine details:

Machine in stock:

Packaging and delivery:

Working places:

Welcome friends to visit:

Kind remind:

If you are interested in this machine, please detail your requirements while you are sending your inquiry, the more, the better, so that we can give you the best recommendation.
