Punch Type Charcoal Briquette Press

briquette press, 1 year warranty, compititive price briquette press, easy operation briquette press - details see: https://www.machineto.com/punch-type-charcoal-briquette-press-10309897

Type:Briquette Machines,Punch type	Place of Origin:Henan China (Mainland)	Brand Name:E.P	Model Number:HSMQ Series
Capacity:26-50 pcs/min	Shapes:Adjust	Certificate:CE motor	MOQ:1 Set
Raw Material:Coal, Charcoal	Color:Green,Blue.ect	Warranty:12 months	Condition:New

Introduction of the briquette making machine:

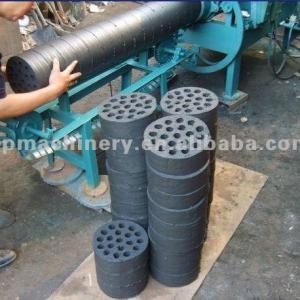

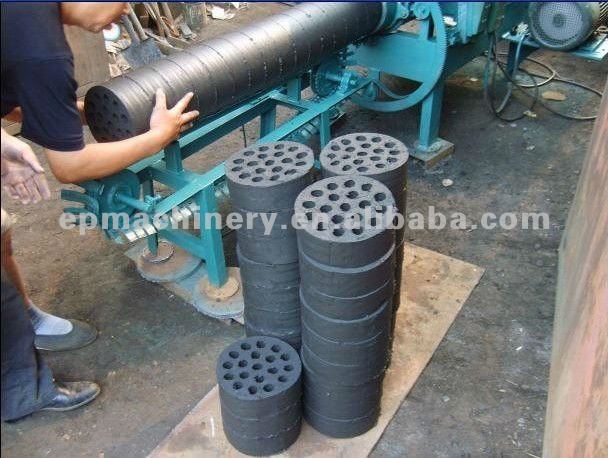

The honeycomb briquette machine can produce briquettes as fuel from coal and charcoal powder, it is can be used in producing the biomass waste charcoal into briquettes.

The process for producing charcoal briquette as follow:

1.Crush the raw material into small pieces (diameter is about 3-5mm)

2.Dry the material by machine or dried it in the sun , till the moisture is less than 12%

3.Put the material into feed let of briquette machine

4.Produce the honeycomb briquette

Datas:

Model	Capacity	Power( KW)	Diameter Of Mould(MM)	Feeding Height(MM)	Diameter of Briquettes(MM)
HSMQ-140	45-50 pcs/min	7.5	140	930	<140(Round), <100x100x80(Square)
HSMQ-160	45-50 pcs/min	7.5	160	980	<160(Round), <125x125x80(Square)
HSMQ-180	45-50 pcs/min	7.5	180	1000	<180(Round), <150x150x90 (Square)
HSMQ-220	26 pcs/min	11	220	1050	<220(Round), <200x200x90(Square)
