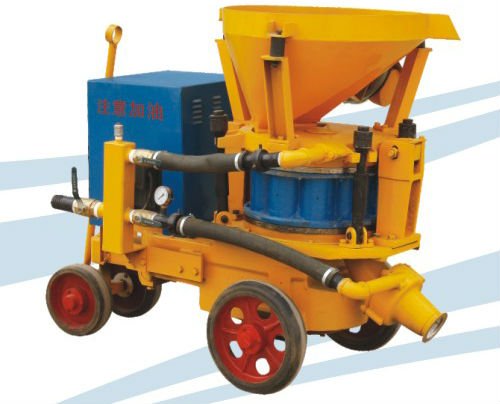

pertinent PZ-6 dry shotcrete machine

dry type shotcrete machine, 1.dry and moist spraying, 2.high quality,low price, 3.best sale service, 4.capacity:6m3/h,productive - details see: https://www.machineto.com/pertinent-pz-6-dry-shotcrete-machine-10096070
Condition:NewMax. Conveying Distance:200m/40mMax Aggregate Size:20mmHose Inner Diameter:51 mm
Air Consumption:8m3Place of Origin:Henan China (Mainland)Brand Name:KemingModel Number:pz-6
Voltage:380v/660vPower(W):5.5kwCertification:isoWarranty:1year
After-sales Service Provided:Engineers available to service machinery overseas
pertinent PZ-6 dry shotcrete machine
contact supplier for pertinent PZ-6 dry shotcrete machine


Features:

  1. PZ-6 dry type and moist type shotcrete machine
  2. moveable PZ-6 dry type shotcrete machine with for wheels
  3. motor-driven shotcrete machine, more convenient to use
  4. high technology, reasonal structure
  5. stable property
  6. convenient operation and maintainance
  7. long working life
  8. long history of more than 30 years in shotcrete machine
  9. big manufacture and trading company
  10. all the machines are designed and made by ourselves

Technical parameters:

Capacity6m³/h
Max. Conveying distance<200m/40m
Suitable material ratio(water:sand)1:3-5
Suitable water cement ratio<0.4—0.45
Max. Aggregate size20m
Inner diameter of conveying pipe51mm
Working wind pressure0.2—0.4Mpa
Wind consumption7—8m³/min
Shotcrete machine motor power5.5kw
Voltage grade380v/660v
Dimension1520*820*1280(mm)

Company profile:

Keming Mechanical & Electric Department directly subordinate to Henan Research Institute of Coal

Science expands from a pilot plant supported by abundant scientific research strength of Henan

Research Institute of Coal Science. Now it develops into a leading enterprise in the industry of

concrete spraying machine and is formed by concrete spraying machine as the main body of series

of diversified products. It owes high reputation in society with high quality and technology.

Contact us:

Websitehttp://hnmky.en.alibaba.com
Tel.86-371-67836512
Fax86-371-63930764
Postcode450001
MSNmky-keming
Add.NO. 17 Fengyang Street, Zhengzhou City, Henan Province

pertinent PZ-6 dry shotcrete machine
Packaging Detail:seaworthy wooden cases
Delivery Detail:7-15 days after your confirmation
