New Type Xinyuan gypsum powder production line
| Condition:New | Type:Raymond Mill | Motor Type:Other | Capacity(t/h):0.15-8t/h |
| Place of Origin:Henan China (Mainland) | Brand Name:XINYUAN | Model Number:3R,4R,5R | Certification:ISO9001:2008 |
| After-sales Service Provided:Engineers available to service machinery overseas | warranty:1 year | color:as request |
I, gypsum powder production line scope
Raymond Mill barite powder machine applies to, calcite, K-feldspar, talc, marble, limestone, ceramic, glass and Mo's hardness of not more than seven, humidity below 6% of non-combustible mineral, chemical, building materials, metallurgy, and a variety of materials industry 280 Milling Machining , finished in the 100-325 size of the head of arbitrary regulation, by adding device also produces 50 to 80 head to coarse.
II, gypsum powder production line structural features
1, Raymond Mill dimensional structure, small footprint, turnkey highly refined powder expected from the block of independent self-production system.
2, refined powder fineness of uniform rate of 99% on screen, it is difficult to other milling equipment available.
3, Mill Drive mainframe installations in confined pulley and gear box, transmission smooth, reliable operation.
4, Raymond Mill important components are used quality steel, wear-resistant performance of wear resistant materials are used, the whole high wear resistance, reliable operation.
5, the electrical system is centralized control, milling plant can be realized no one basic operations and maintenance.
III, gypsum powder production line Specifications
Model | Grinding Roller | Grinding Ring | Feeding | Output size (mm) | Capacity | Motor | Overall | |||
| Numbers (pcs) | Diameter (mm) | Height (mm) | Outside Diameter (mm) | Height (mm) | ||||||
| 3R1410 | 3 | 140 | 100 | 495 | 100 | <8 | 0.613-0.044 | 0.15-1.2 | 14.1 | 3340×2200×3200 |
| 3R2115 | 3 | 210 | 150 | 726 | 150 | <15 | 0.613-0.044 | 0.28-1.8 | 28.2 | 4480×3100×3970 |
| 3R2615 | 3 | 260 | 150 | 865 | 150 | <15 | 0.613-0.044 | 0.35-2.8 | 35.7 | 5000×4100×4850 |
| 3R2715 | 3 | 270 | 150 | 884 | 150 | <15 | 0.613-0.044 | 0.40-3.4 | 42.7 | 5050×4150×4900 |
| 3R3015 | 3 | 300 | 150 | 965 | 150 | <15 | 0.613-0.044 | 0.45-3.7 | 55 | 5200×4200×4950 |
| 4R3016 | 4 | 300 | 160 | 990 | 160 | <20 | 0.613-0.044 | 0.6-4.5 | 55 | 5250×5000×5500 |
| 4R3216 | 4 | 320 | 160 | 1073 | 160 | <25 | 0.613-0.044 | 1.0-5.2 | 72.5 | 7700×7200×8800 |

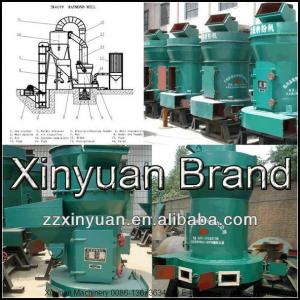

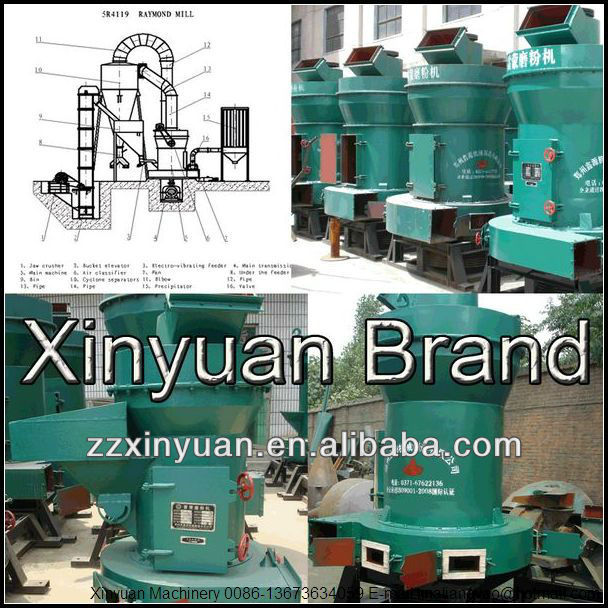

Drawing of gypsum powder production line
Contact with Tina Liang
| Packaging Detail:Usually in bulk,can do special packing as client's requirment ,it can cause extra expense. |
| Delivery Detail:Within 20days after we receive your deposit |
