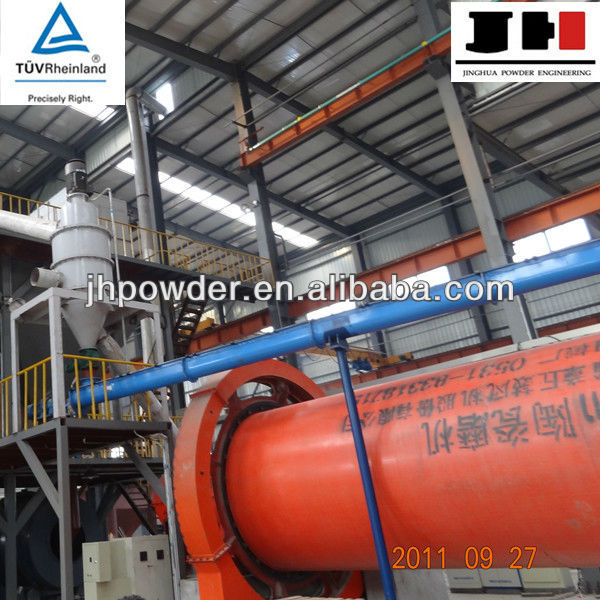

Ceramic ball mill 1.Available 300-2500mesh, 2.Large capacity, 3.No over grinding;, 2.High purity products - details see: https://www.machineto.com/most-advanced-available-jhm-air-classifier-ceramic-ball-mill-10314097

Ball mill

Features:

1. Optimized length-diameter ratio to ball mill matched with advanced AF series of single or multi-classifier with build-in classifying wheel controlled by frequency transducer results in easily giving particle size from 325 to 2500 meshes in narrow distribution and avoiding over crushing.

3. Negative pressure operation prevents heat dissipation in ball mill with no need of water cooling to ball mill.

4. Mixture ratio of big and small grinding media is based on the technical requirement for fineness of final product.

5. Application of grinding agent in operation can improve grinding efficiency.

6. Liner and grinding media made from alumina, quartz and high chrome can be selected based on the different chemical component and physical properties of different material to be ground, therefore the purity and whiteness of product is assured.

7. The air classifier ball mill production line is designed on basic of our many years’ practical experience and research of superfine size reduction and classification, featuring high production capacity and low consumption.

8. Diversified device layout, we can offer the optimal design plan based on customer’s technical requirement about production capacity and product fineness.

9. The production line can be arranged in horizontal and vertical version based on customer’s existing workshop.

10. Reliable and stable operation results in little failure rate.

11. Compact structure lowers user’s building investment cost.

12. Strict quality control to every spare part of the total system, equipment quality from outside to inside is compared with Germany’s.

13. Product seriation with annual production capacity of 5-70000 ton for your selection.

14. Avaliable turnkey project.

15. Atomic control and easy operation.

Applications

Ball mill classifying production line is used for calcium carbonate (marble, calcite, limestone, chalk), quartz, zircon, feldspar, barite, kaolin, dolomite, magnesite, alumina, ultrafine cement, clinker, slag, etc.

Technical parameter:

Series	Configuration	Power(Kw)	Capacity(T/h)	fineness(d97=um)
1	1.5 with AF200	190	1-5	2-60
2	1.83with AF300	340	3-10	2-60
3	2.2with AF400	490	5-15	2-60
4	2.4with AF600	625	10-30	2-60
5	2.4with AF800	810	15-40	2-60
6	2.6with AF1000	1200	30-80	4-60
7	3.0with AF1200	1500	40-150	4-60
8	3.5with AF2000	2350	60-200	5-60

Can supply Technical Project according to material
