Capacity: 1.6ton -25ton, Headroom: low headroom, Usage: Construction Hoist, Operating voltage 220-440V, 50/60Hz, 1-3 phase - details see: https://www.machineto.com/low-headroom-electric-wire-rope-hoist-with-motoriced-trolly-10097095

H-LIFT Wire Rope Hoist FEATURES:

Our company is an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), as a company with more than 10 years experiences.

1. Hooks

Load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.

2. Power

Operating voltage 220-440V, 50/60Hz, 1-3 phase.

Low voltage control 36V is standard.

Dual voltage is available.

3. Motor

High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.

Sturdy pole change motors with cylindrical rotors and integrated safety brakes.

3. Limit Switch

Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.

4. Pushbutton Swith

Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.

5. Hoisting Gear:

Lightweight gear units with silent running flat bevelled gears deliver the torque required.

6.Rope guide:

The rope guide reduces wear on the rope and rope drum. It is also easy to install, reducing maintenance requirements for the unit as a whole.

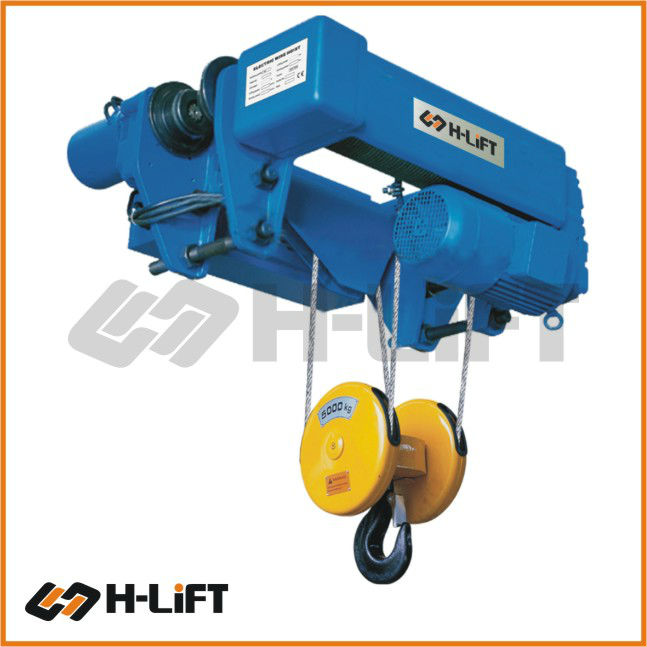

A compact designed monorail hoist with low headroom dimensions and two direct drive cross travel motors. The cross travel trolley is adjustable to suit various flange widths. These most cost effective and frequently ordered hoists have a load range from 1.6ton to 25ton.

MODEL

CAP. (T)

LIFTING SPEED(M/MIN)

TRAVELLING SPEED(M/MIN)

GROUP ISO

ROPE REEVING

LIFTING MOTOR(KW)

C/mm

A1/mm

A2/mm

B/mm

Hmin/mm

S/mm

WHL-CA2016

1.6

8.0/1.2

15/5

M5

2/1

2.5/0.37

100-500

378

297

430

917

0.0198H

WHL-CA2032

3.2

4.0/0.6

15/5

M5

4/1

2.5/0.37

100-500

378

297

430

760

0.0198H

WHL-CA3025

2.5

8.0/1.2

15/5

M5

2/1

4.9/0.8

116-450

400

329

525

1014

0.0212H

WHL-CA3050

5.0

4.0/0.6

15/5

M5

4/1

4.9/0.8

116-450

400

329

525

872

0.0212H

WHL-CA4063

6.3

10/1.6

15/5

M4

2/1

12.5/2.0

142-500

475

458

688

888

0.0192H

WHL-CA4125

12.5

5/0.8

15/5

M4

4/1

12.5/2.0

142-500

475

458

688

897

0.0192H
