Japanese Type Gasoline Needle Vibrator

Japanese Type Gasoline Needle Vibrator, DYNAPAC Maylasia Type,Australia Type,Russia Type,, Diesel,Electric Concrete Vibrator - details see: https://www.machineto.com/japanese-type-gasoline-needle-vibrator-10095387
Place of Origin:Zhejiang China (Mainland)Brand Name:CONSMACModel Number:SVD Series and SVS SeriesType:Internal
Drive Mode:Engine VibratorFrequency:3600rpmVibrating Amplitude:3600rpmLength of Flexible Shaft:1~12m, 6m is standard
Product Name:Japanese Type Gasoline Needle VibratorEngine:Gasoline, DieselCoupling Choice:Japanese type,DYNAPAC type, Russia Type,Malaysia typeHose Choice:25mm,28mm,32mm,35mm,38mm,45mm,50mm,60mm,70mm
Japanese Type Gasoline Needle Vibrator
contact supplier for Japanese Type Gasoline Needle Vibrator

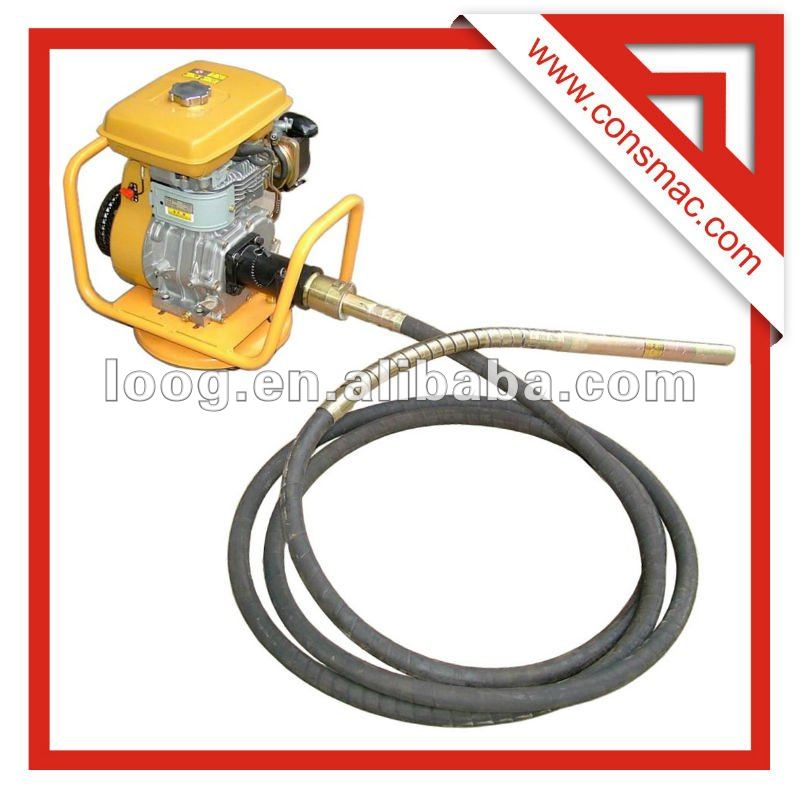

Gasoline Needle Vibrator

CONSMAC SVD series Gasoline Needle Vibrator is the drive unit for various concrete vibrator shaft.

Gasoline Needle VibratorCoupling Choice:

1. DYNAPAC Coupling

2. Japanese Coupling

3. Ball Type Coupling

4. Pin Type Coupling

5. Other coupling like Australia type, Russia type can be available, based on customers' choice.

Gasoline Needle Vibrator Specification:

ModelSVD-HSVD-RSVD-LSVD-K
EngineAir-cooled, 4-cycle,single cyliner
Engine TypePetrol, Honda GX160Petrol, Robin EY20Petrol, Lifan 168FDiesel, Kama 170F
Power5.5hp/4.0kw5.0hp/3.6kw5.5hp/4.0kw3.8hp/2.8kw
Rotary Speed3600rpm
Coupling ChoiceDYNAPAC Type, Pin Type, Ball Type
ApplicationsConcrete vibrator, submersible flexible pump
Weight22kg(49lbs)25kg(55lbs)24(53lbs)34(75lbs)
Packing53*38*54cm(21*15*21in)

Needle Vibrator Shaft

CONSMAC SVS series high-performance mechanical Needle Vibrator Shaft. Large choice of couplings and diameters from 25 to 75 mm, drived by CONSMAC Diesel, Gasoline Needle Vibrator(SVD series) and Electric Needle Vibrator(SVE series)

Needle Vibrator ShaftCoupling Option:

1. Japanese type

2. Dynapac type

3. Russian type

4. Turkish type

5. Australian type

6. Chinese square type

7. Other couplings can be available, based on customers' choice.

Needle Vibrator ShaftSpecification

ModelSVS25SVS28SVS32SVS35SVS38SVS45SVS50SVS60SVS70
Head Dia.25mm28mm32mm35mm38mm45mm50mm60mm70mm
Length of ShaftStandard length:6m(1m-12m is available)
Hose outside Dia24mm25mm30mm32mm36mm
Hose inner Dia13mm14mm16mm18mm20mm
Shaft Dia8mm10mm12mm13mm
Frequency230hz210hz200hz
Amplitude1.1mm1.11mm1.13mm1.15mm1.18mm1.2mm1.21mm1.28mm1.32mm
Couple ChoiceJapanese type ,Dynapac type,Chinese square type,Australian type,Turkish type
Drive unitElectric motor, Petrol engine, Diesel engine
Packing size85*65*6cm(33*25*2.5in)
OptionalOuter Liner, Spring

All CONSMAC Needle Vibrators are available for online purchase with fast delivery.

Please feel free to contact us atPhone No: 0086- 574- 88192352, or send usenquiries on line, all your mails will be replied within 24 hours.

Japanese Type Gasoline Needle Vibrator
Packaging Detail:Carton box
Delivery Detail:10 days
