Concrete Batching Plant:, 1.Auto operation by PLC, 2.Output:50cbm/h., 3.Adopt twin shaft mixer., 4.Cement scale and water scale. - details see: https://www.machineto.com/hzs50-professional-concrete-batching-plant-10091086

HZS 50 Concrete Batching Plant is a high-efficiency equipment to produce plastic, dry concrete and other concrete, be widely used in large and medium scale construction, road and bridge engineering, water and powder, harbour, airport, large precast products plant and commercial concrete plants. This series concrete batching plant is the ideal equipment for producing concrete products. HZS series adopts modular structure design, which maintains convenient installation&removal, safe, comfortable and reliable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintenance. Full-closed main mixing body, aggregate conveying system and dust removal system, it can effectively reduce dust and noise pollution.

The whole set of concrete batching plant is consist of batching station, belt conveyor, silo, screw conveyor, conmpulsion type double horizontal mixer, measuring system, water supply system, air supply system, control system, main frame, etc.

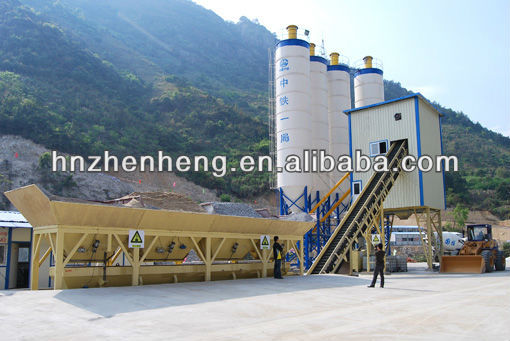

HZS50 concrete batching plant
Productivity	50m³/h
Mainframe model	JS1000
Mainframe discharging volume	1000L
Maximum size of aggregate	60/80mm
Mixing motor power	37kw
Lifting hopper power	11kw
Aggregate batching system	PLD2400
Aggregate silo volume	4*3500L
Batching volume	2400L
Specise of dosing	3-6
Powder silo volume	100t(as customer’s request)
Power screw conveyor	40t/h
Aggregare metering accuracy	±2%
Water metering accuracy	±1%
Cement metering accuracy	±1%
Cycle period	75s
Discharging height	3800mm
