HSZ-C chain block, 1)capacity:0.5t-20t, 2)CE & GS, 3)High efficiency and small hand pull;, 4)Light weight and easy handling - details see: https://www.machineto.com/hsz-c-chain-block-10096704

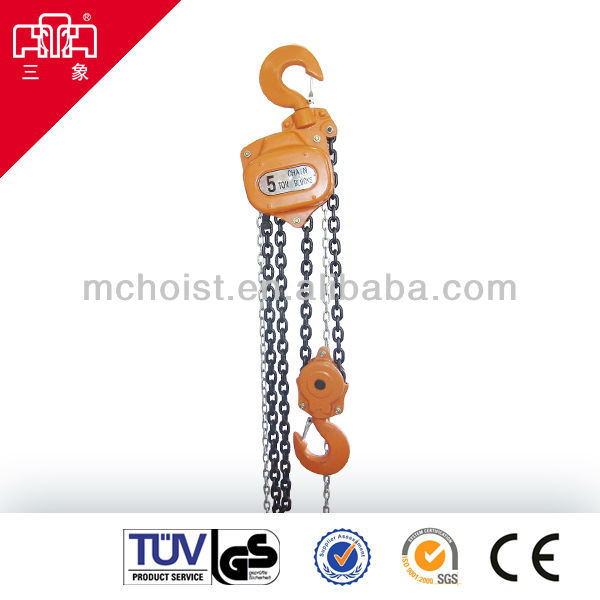

The HSZ-C Series Chain Block is a portable lifting device easily operated by hand. It is suitable for use in factories, mines, farms, construction sites, agricultural production, and in wharfs, docks and storages for fixing machines, lifting cargos, and loading and unloading goods. It is especially advantageous for lifting work in the open air and places where no power supply is available.

The chain block can be attached to a trolley of any type as a traveling chain block. It is suitable to monorail overhead conveying system, handtravelling crane and jib crane.

HSZ-C series chain block specifications
Model		HSZC0.5	HSZ-C1	HSZ-C1.5	HSZ-C2	HSZ-C3	HSZ-C5	HSZ-C10	HSZ-C20
Rated Cap.		0.5	1	1.5	2	3	5	10	20
Lifting		2.5	2.5	2.5	3	3	3	3	3
Test load		0.75	1.5	2.25	3	4.5	7.5	12.5	25
Standard of load chain		5*15	6*18	7.1*21	8*24	7.1*21	9*27	9*27	10*30
standard of hand chain		5*22	5*22	5*22	5.5*23.5	5*22	5.5*23.5	5.5*23.5	5*25
Net weight		7.6	10.4	13.3	21.5	21.8	40	65	146
Package size		20*19*15	25*19*17	29*22*18	31*23*22	38*22*18	40*31*22	51*42*26	68*66*37
Min. distance between hooks:		312	360	385	430	490	675	880	1100
