shotcrete machine, 1. Capacity: 7m3/hour, 2. Maximum jet length: 200m, 3. Applicable materials: Concrete and dinas - details see: https://www.machineto.com/hsp-7-wet-shotcrete-machine-for-construction-with-best-price-10096259

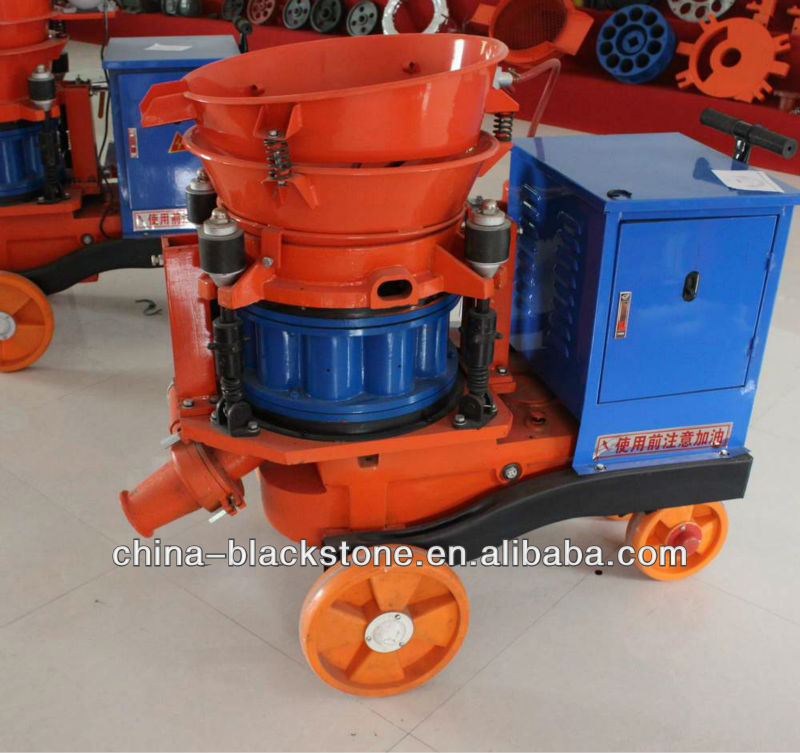

HSP-5 wet shotcrete machine for construction with best price

Technical parameter

Model	HSP-7
Working capacity	4-5 m3/h
Working air pressure	0.4 - 0.6Mpa
Air consumption	10 - 15m3/h
Max transport distance	30m
vibration motor power	0.37KW
Max diameter of material	15 mm
Motor model	Y160-6-7.5KW
Applicable materials	Concrete and dinas
Voltage	Customized
Net Weight	900kg
Dimension	2000×800×1300mm

About us:

We are a professional manufacturer with long history, our main products are concrete shotcrete machine, grouting machine, etc. We always concentrate on R & D, production, sales, after-sales service and technical guidance in the past years, and we are doing our best to provide our customers more quality products and services.

Hope will have the opportunity to cooperate with you.

Features:

• High quality, reliable performance
• Reasonable design, convenient to move
• Good seal performance
• Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
• Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
• We make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
• Widely used in mining, tunnel, culvert, revetment, etc
