Ceramic Ball Mill, 1.Low energy consumption, 2.We are direct manufacturers, 3.Stable,high efficiency, 4.durable quality - details see: https://www.machineto.com/hot-sell-alumina-ceramic-ball-mill-with-competitive-price-10314456

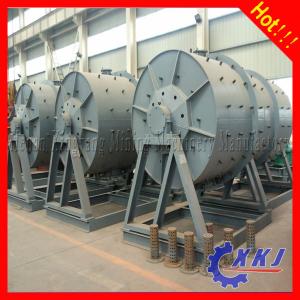

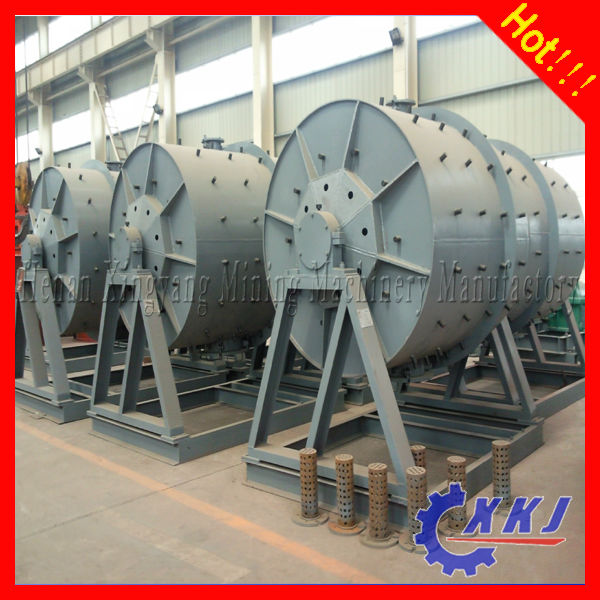

Alumina ceramic ball mill's introduction:
ceramic ball mill is mainly used for material mixing and grinding,the product fineness is uniform.This machine is very energy efficient and can be used for both dry and wet grinding for all kinds of ores and other grind-able materials.This machine can according to production needs to adopt different lining plate, in order to meet different needs. The fineness can be control by the grinding time.The motor structure is divided into monolithic and detached.

This product features include:

less investment, more energy-saving than similar products, novel structure,the operation is simple and safe, stable and reliable,suitable for mixing and grinding general and special material. Users can choose suitable model liner board and media types according to the material proportion, hardness, and production comprehensive factors.

Applications of Alumina ceramic ball mill/mill machine:

Ceramic Ball Mill is widely used in powder making production line in industries,It is a key equipment to grind all kinds of ores and other materials, including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

Alumina ceramic ball mill's characteristics:
Energy saving, novel structure, simple operation, the use of safe, determining performance, reliability, etc. It is suitable for general and special material mixing and grinding operations.

Technical Parameters of ceramic ball mill:

Specification	Cylinder size (mm)	Output size(mm)	Weight of loading(t)	Speed of bucket(r/min)	Power(kw)	Piece Weight(kg)
0.2T	Φ910×1120	0.075-0.89	0.2	35	2.2	1910
0.5T	Φ1200×1420	0.075-0.4	0.5	31.45	4	2500
1T	Φ1400×1800	0.075-0.4	1	27	7.5	3000
1.5T	Φ1800×2100	0.075-0.4	1.5	23	11	4500
2.5T	Φ2200×2200	0.075-0.4	2.5	20	18.5	6500
3T	Φ2200×2600	0.075-0.4	3	20	22	7000
5T	Φ2500×3000	0.047-0.4	5	16	37	13000
8T	Φ2800×3400	0.047-0.4	8	13.8	45	19000
10T	Φ2800×4000	0.047-0.4	10	13.8	55	20000
15T	Φ3000×5000	0.047-0.4	15	13	75	28000
18T	Φ3100×5000	0.047-0.4	18	12	90	28500
20T	Φ3200×5800	0.047-0.4	20	13	90	29900
30T	Φ3400×6500	0.047-0.4	30	14.2	110	32000
40T	Φ3600×7000	0.047-0.4	40	13	132	36000
50T	Φ3800×8000	0.047-0.4	50	11	200	45000
60T	Φ4000×8500	0.047-0.4	60	.10	200	52000
